Removing and installing blower driver: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove footwell bulkhead and right air guide. Unscrew fastening screw and detach the blower driver from the heating/air-conditioning unit housing from below.

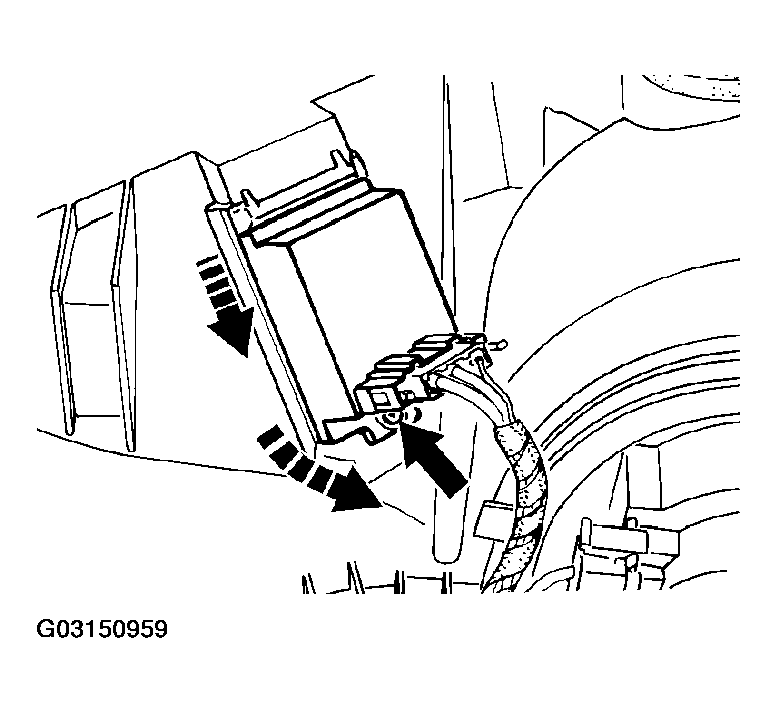

    Fig 1: Removing Blower Driver
    G03150959Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Pull blower driver out of the upper bracket and remove in downward direction.
  3. Pull off the electrical plug connection.
