Assembly work on the air-conditioning system: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Service unit SECU 134

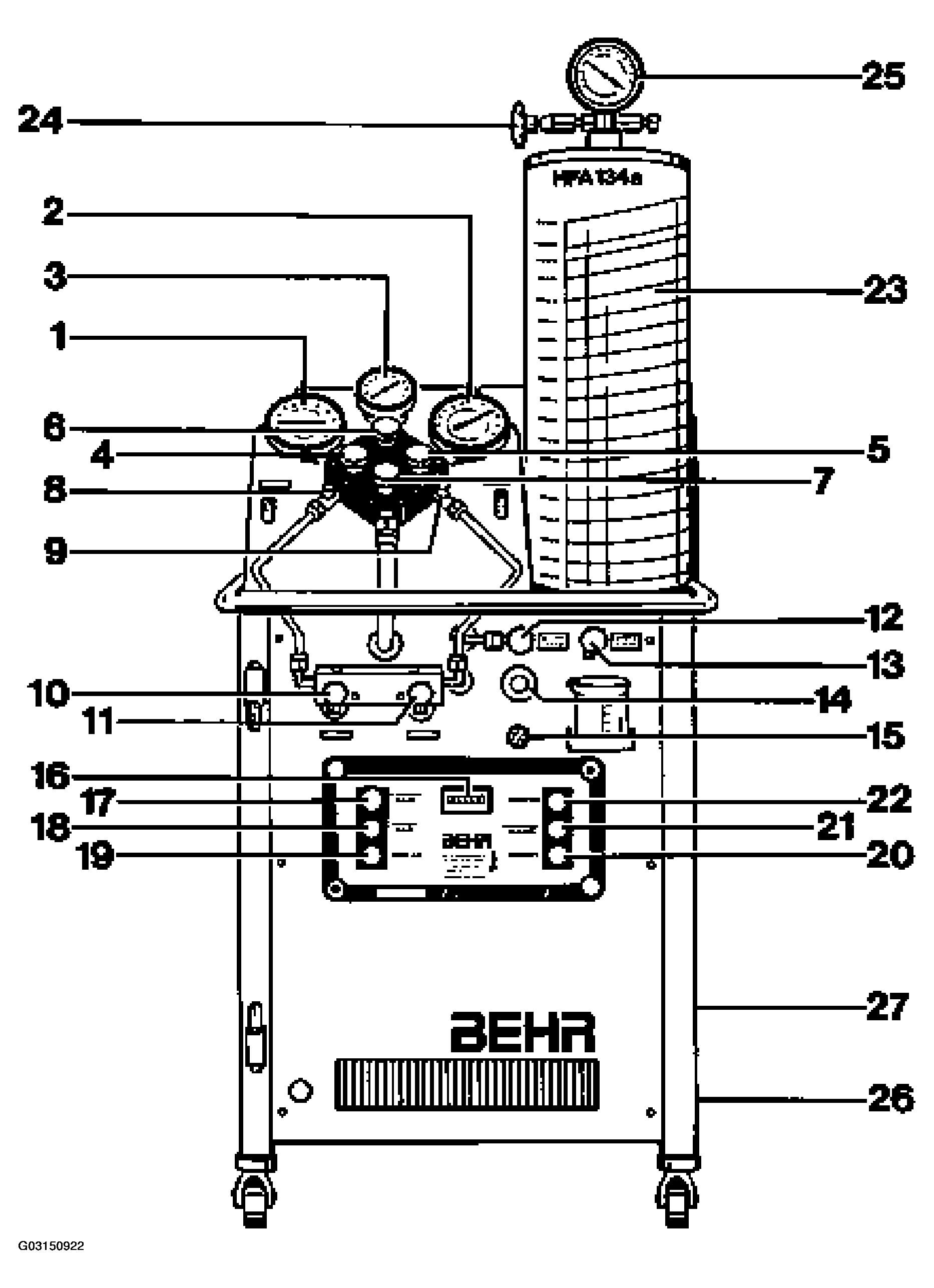

Fig 1: Identifying Air-Conditioning Service Unit SECU 134

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Low-pressure pressure gauge
High-pressure pressure gauge
Torr meter)
Low-pressure shut-off valve (blue)
High-pressure shut-off valve (red)
Torr meter shut-off valve (black)
Vacuum pump shut-off valve (yellow)
Low-pressure flange
High-pressure flange
Refrigerant inlet shut-off valve
Refrigerant outlet shut-off valve
Refrigerant oil inlet shut-off valve
Refrigerant oil vent valve
Moisture indicator
Oil tank vacuum flange
Hourmeter
Pilot light SUCTION END
Pressure switch SUCTION/CLEANING
Main switch ON/OFF
Pressure switch HEATING
Pilot light FAULT
Pressure switch VACUUM PUMP
Filling cylinder with weight scale
Filling cylinder shut-off valve
Filling cylinder high-pressure gauge
Refrigerant oil suction nozzle
Refrigerant oil reservoir inspection glass

NOTE:

The manufacturer's operating and repair instructions must be observed when carrying out all work on the service unit.
