General assembly sequence

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove refrigerant by suction.
  2. Remove faulty part.
  3. Evacuate.
  4. Check the system for leaks.
  5. Rinse with refrigerant.
  6. Empty the system by suction again.
  7. Evacuate.
  8. Fill.
NOTE:
  • Pay attention to sealing rings when disconnecting or connecting the hose connections.

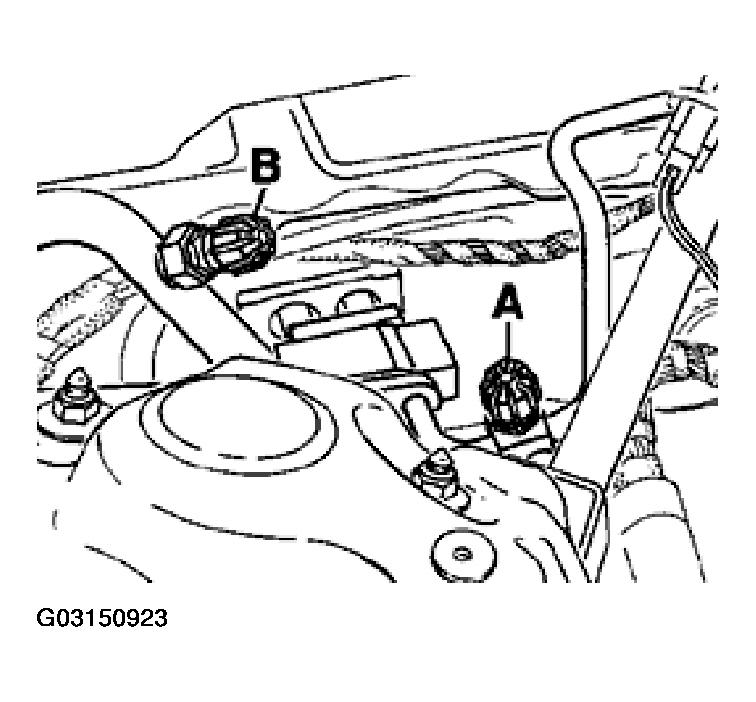

  1. A - High-pressure; B - Low pressure
  2. The charging valves are located in the area of the front right spring strut.
Fig 1: Locating High Pressure And Low Pressure Connections
G03150923Courtesy of PORSCHE OF NORTH AMERICA, INC.
