Filling via the high-pressure side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

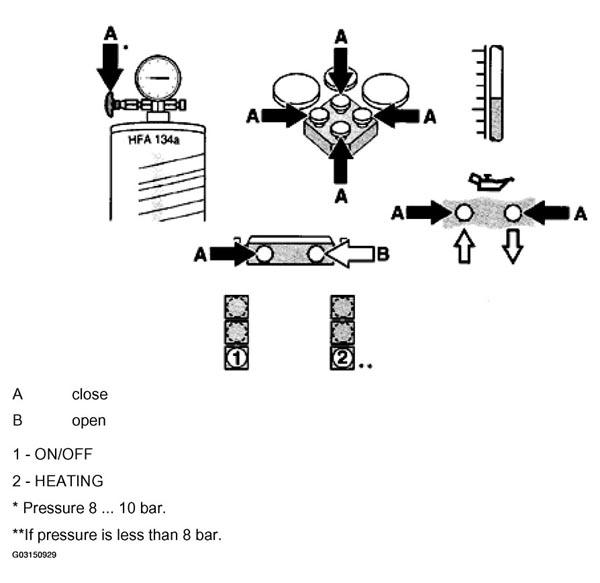

Fig 1: Filling Via High-Pressure Side
G03150929Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. close
  2. open
  1. ON/OFF
  2. HEATING

* Pressure 8... 10 bar.

**If pressure is less than 8 bar.

After using the SECU, perform internal suction removal; first close the hand valves on both suction lines.
