Removing and installing mechanical heating and fresh-air control: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully unclip baffle from the heating and fresh-air control.
  2. Unscrew fastening screws (4 ea.) and pull control module out of the dashboard.
  3. Pull of electrical plug connection. Unclip Bowden cables and pull out upwards or detach cables. Label Bowden cables before removal.

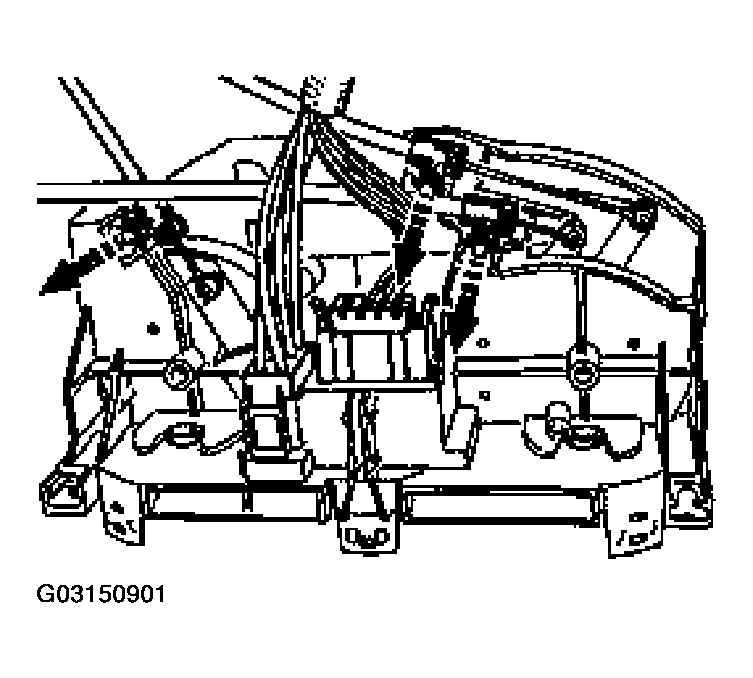

Fig 1: Removing Electrical Plug Connection From Heating And Fresh-Air Control
G03150901Courtesy of PORSCHE OF NORTH AMERICA, INC.
