Removing and installing heating and fresh-air control: Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure correct seating of air-distributor housing and air guides. Engage electrical plug connections and route electrical cables carefully (do not jam).
- Comply with safety regulations when handling airbag units (see SAFETY REGULATIONS FOR VEHICLES WITH AIRBAG AND BELT TENSIONER ).

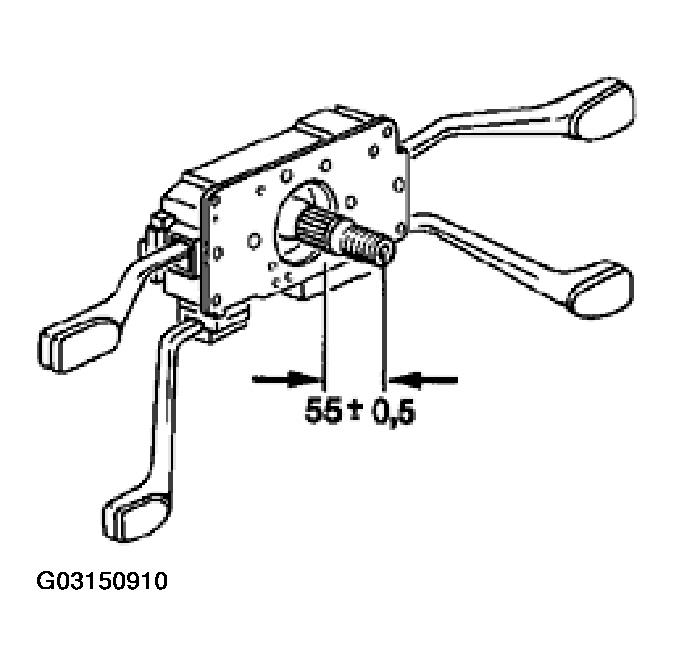

- Adjust steering-column switch: Measure with a depth gauge between end of steering shaft and steering-column switch cover plate (see Fig 1 ). Adjustment dimension is 55mm plus/minus 0.5 mm.
- Replace gasket between current distributor and firewall if necessary. After the current distributor is mounted on the firewall (tightening torque 15 Nm (11 ftlb.) the battery cable is tightened with a new hexagon nut M8. Tightening torque 15 Nm (11 ftlb.).
- The heat exchanger is connected to the engine cooling system, and coolant flows through it when the engine is running. After removing or installing the heating and fresh-air control, vent the cooling system (see DRAINING AND FILLING IN COOLANT (INCLUDES: BLEEDING ).
