Remove and install heater/fresh-air blower motor with installed heating/fresh-air unit.: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove footwell bulkhead and right air guide. Pull off electrical plug connection on the blower motor and remove wire from the holder.

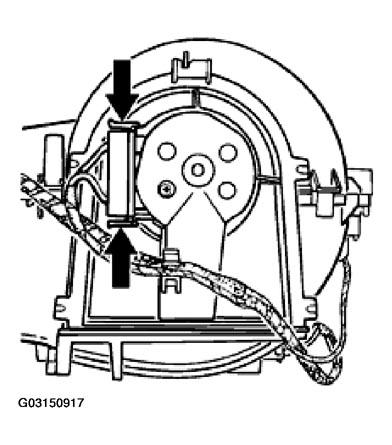

Fig 1: Pulling Electrical Plug Connection On The Blower Motor
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 1 shows the heating/fresh-air unit when removed.
Pull electrical plug connection on the ballast resistor and undo both fastening screws on the housing lid. The ballast resistor and housing lid are a spare part.

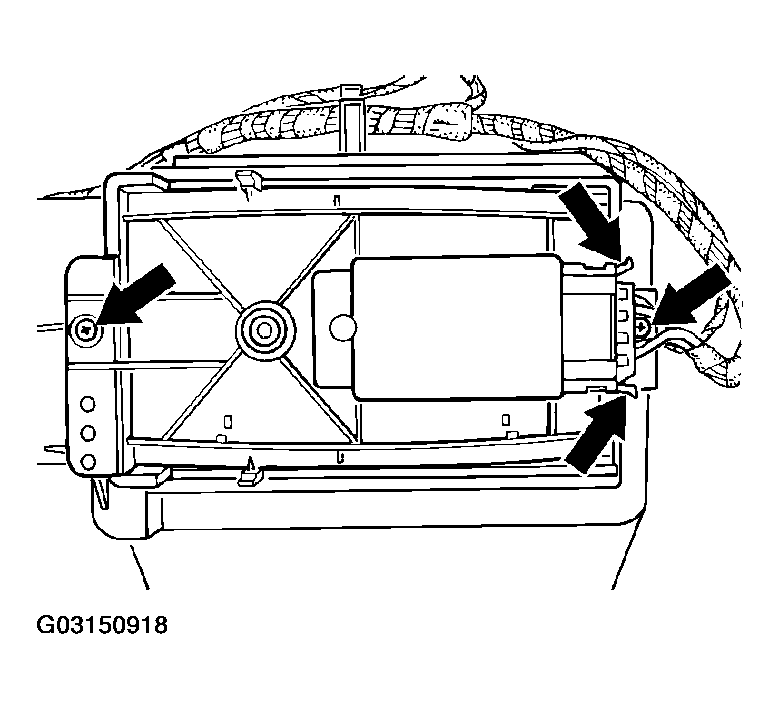

Fig 2: Pulling Of Electrical Plug Connection On Ballast Resistor And Undo Both Fastening

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

When the housing lid is removed, the blower motor is simultaneously detached from its guide. Hold the blower motor and carefully remove it in downward direction.

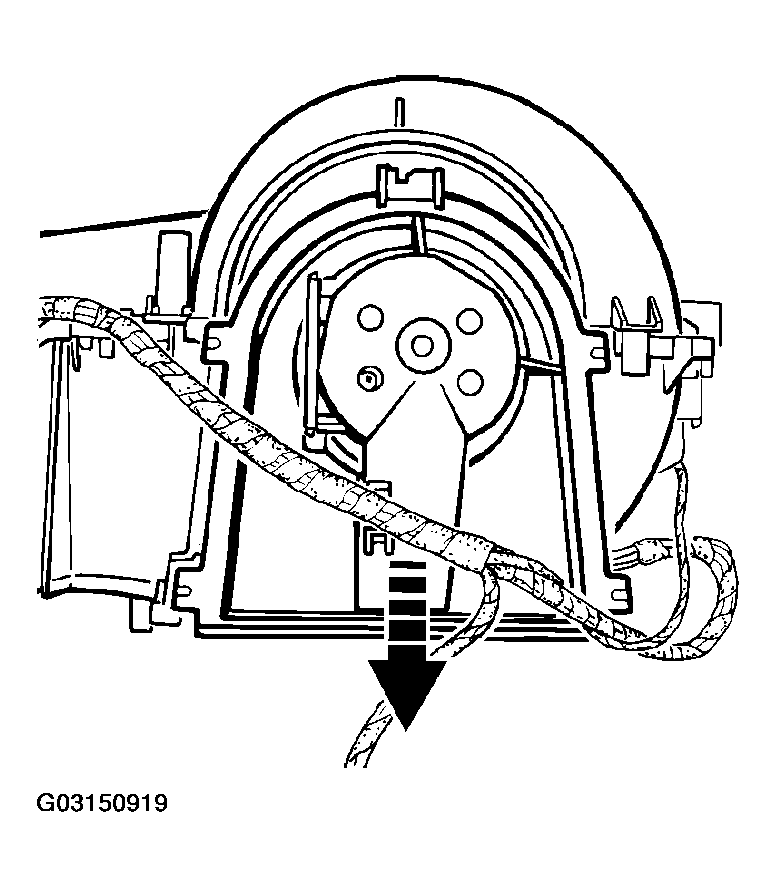

Fig 3: Removing Blower Motor In Downward Direction

Courtesy of PORSCHE OF NORTH AMERICA, INC.
