Remove and install drive motor on installed heating/fresh-air unit: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the recirculation button before removal (fresh-air supply interrupted). The drive motor of the installed heating/fresh-air unit can be removed in this position (recirculation).
  2. Remove footwell bulkhead and right air guide. Disconnect electrical plug connection of the drive motor and undo fastening screw.

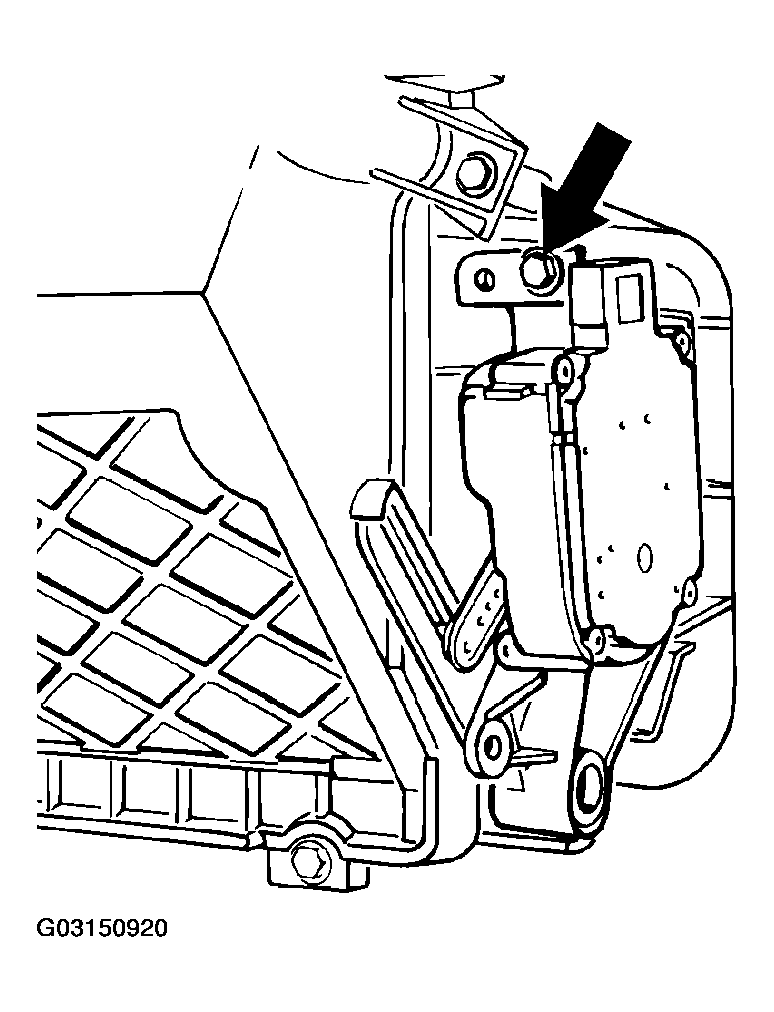

    Fig 1: Disconnecting Electrical Plug Connection Of The Drive Motor
    G03150920Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Swivel down the drive motor and remove to the side.
    NOTE:
    • If the rotary knob for air distribution is set to Defrost (windscreen) with the recirculation button switched on, the recirculation button is automatically switched off.
