Installing and adjusting bowden cables of the heating/fresh-air control: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install the heating/fresh-air control with installed bowden cables. The sleeves of the bowden cables are adjusted at the fastening points on the heating/fresh-air unit.

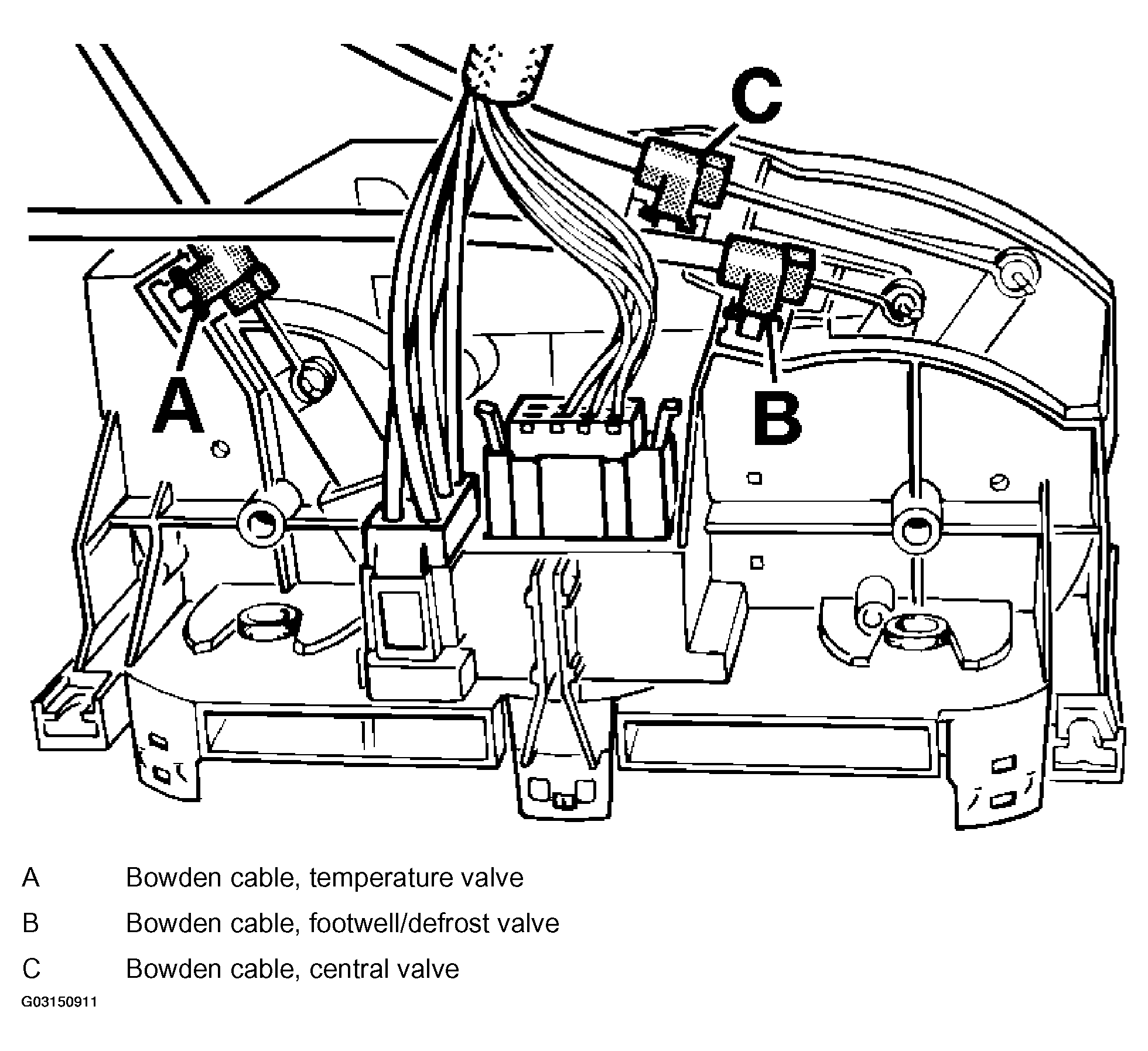

Fig 1: Installing And Adjusting Bowden Cables Of The Heating/Fresh-Air Control

Courtesy of PORSCHE OF NORTH AMERICA, INC.
