Adjusting temperature valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Turn temperature control to left-hand stop (cold). Temperature valve closed; no passage to the heat exchanger.

Fig 1: Setting Temperature Control To Left-Hand Stop
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Engage bowden cable in the adjusting lever.

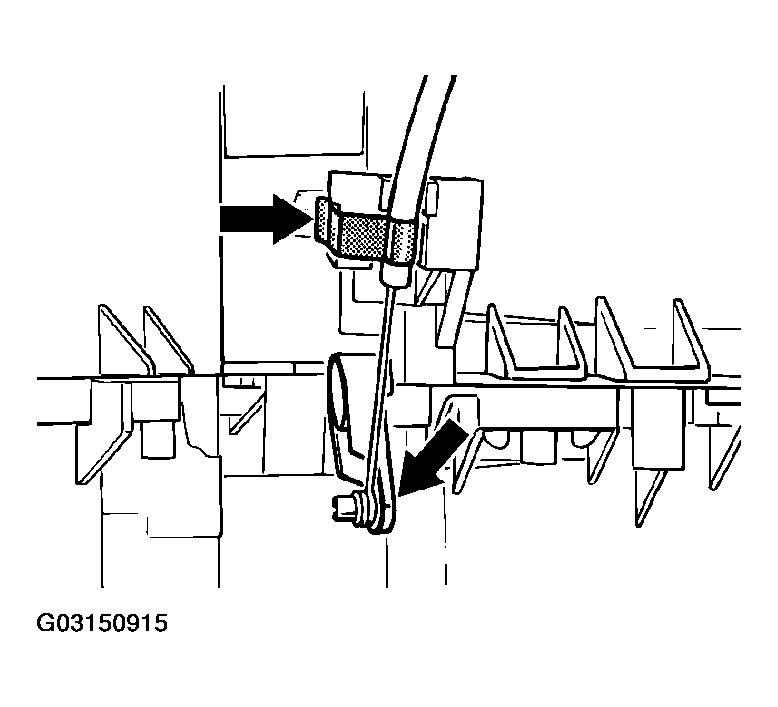

Fig 2: Engaging Bowden Cable In Adjusting Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push adjusting lever of the temperature valve up to its stop and use the retaining clip to fasten the sleeve of the bowden cable on the fastening point.
Adjusting footwell/defrost valve
Turn rotary knob for air distribution to the symbol for the footwell. Defroster outlet closed; no passage to the windscreen.

Fig 3: Turning Rotary Knob For Air Distribution To The Symbol For The Footwell
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Engage bowden cable in the adjusting lever.

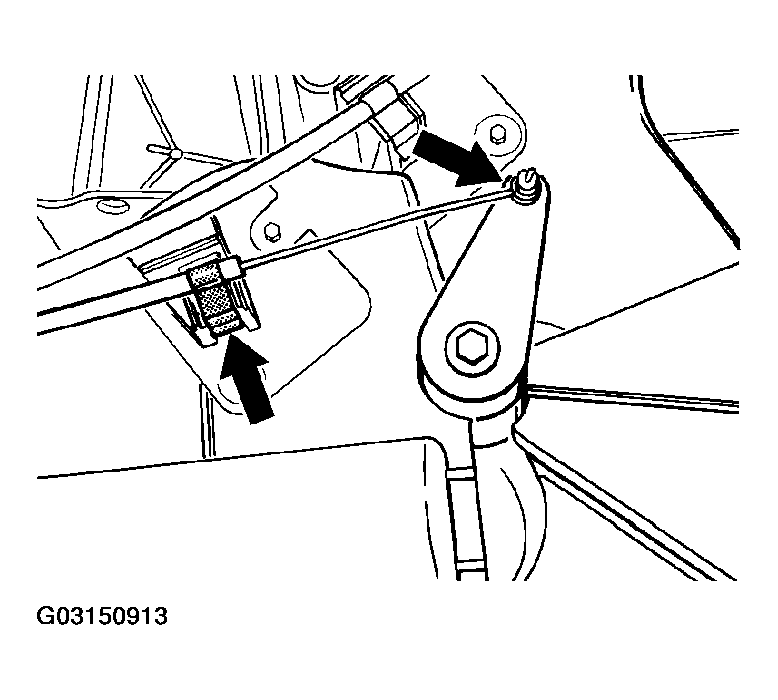

Fig 4: Engaging Bowden Cable In Adjusting Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push adjusting lever of the footwell/defrost valve up to its stop and use the retaining clip to fasten the sleeve of the bowden cable to the fastening point.
