Adjusting central valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Turn rotary knob for air distribution to the symbol for the footwell. Air outlet to the centre and side vents closed.
Engage bowden cable in the adjusting lever.
Push adjusting lever of the central valve up to its stop and use retaining clip to fasten the sleeve of the bowden cable to the fastening point.

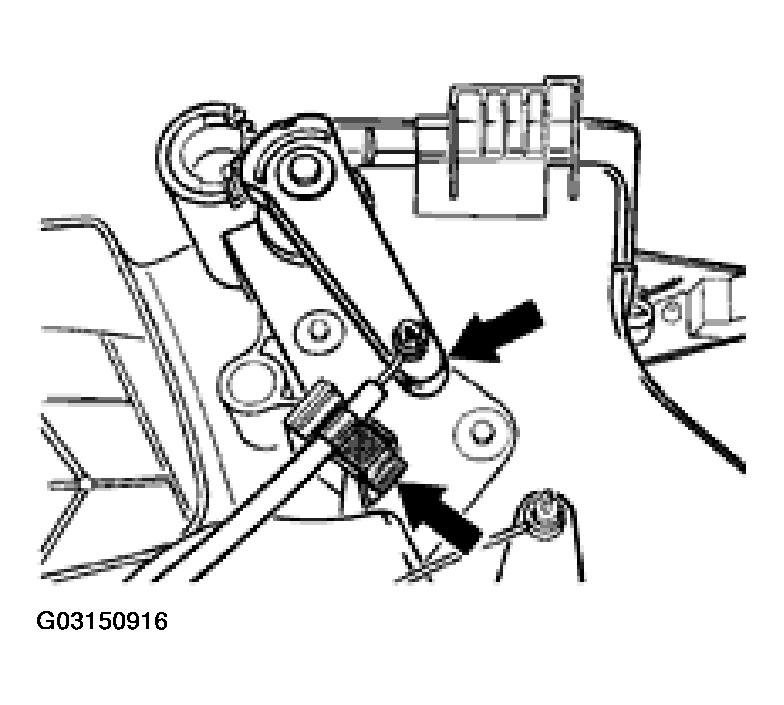

Fig 1: Fastening Sleeve Of Bowden Cable To Adjusting Lever Of The Central Valve

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Perform a function test after installing the bowden cables.

Test limit position of the rotary knobs for air distribution and adjusting levers of the valves.
