Central plug

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

-A- Coding pin: In the Boxster in opening 2, in the 911 Carrera and 911 Turbo in opening 5. Pin BR opening 6, pin RE/VI opening 3. See Fig 1 .
-B- Slide in lock-in position. See Fig 1 .

Removing coding pin and pin
See REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
1. Pull slide -B- in -direction of arrow 1- . See Fig 1 .
2. Lever out fuse -arrow 2- with a small screwdriver and remove completely. See Fig 1 .
3. Pull out coding pin -A- in Fig 1 with pliers. Press pin out of flat connector using press-out tool. See TOOLS .

Installing coding pin and pin
1. Insert coding pin -A- and pin into the flat connector until it engages. See Fig 1 .
2. Insert fuse -2- in -direction of arrow- until it engages. See Fig 1 .
3. For seat installation: Insert counter plug into vehicle and push in slide -B- . See Fig 1 .

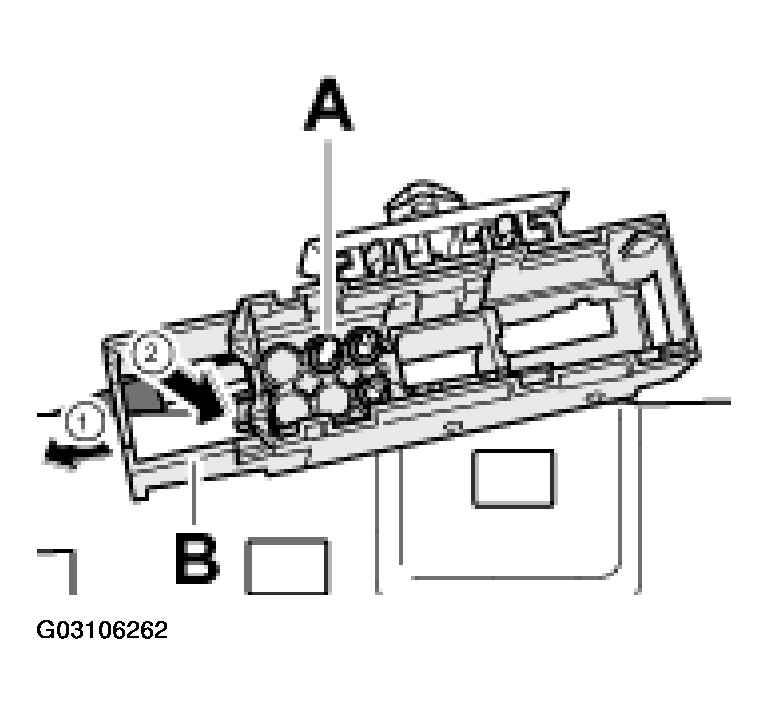

Fig 1: Removing/Installing Coding Pin And Pin

Courtesy of PORSCHE OF NORTH AMERICA, INC.
