Installation of end muffler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The flow edge of the reinforcing plates for the muffler holder must point forwards in the direction of travel and towards the centre of the engine.

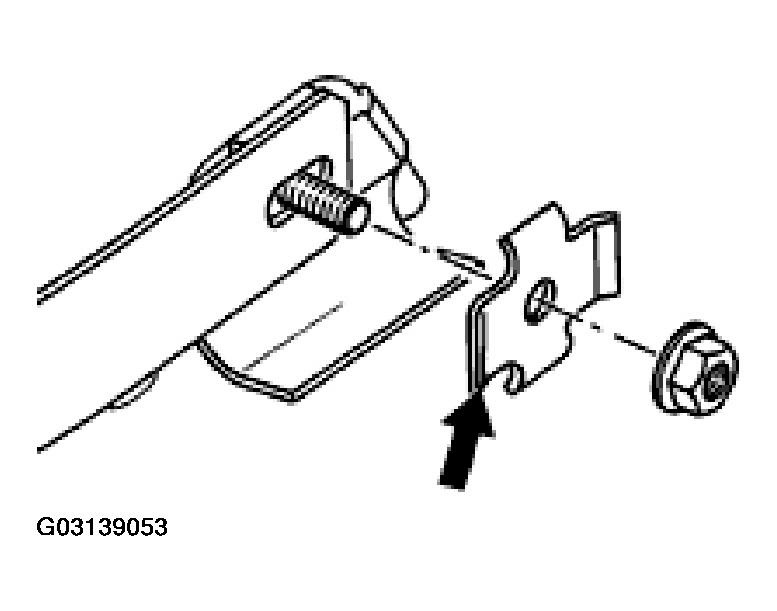

Fig 1: Identifying Reinforcing Plates Position

Courtesy of PORSCHE OF NORTH AMERICA, INC.
