Leak test for exhaust system - as of MY 2003: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

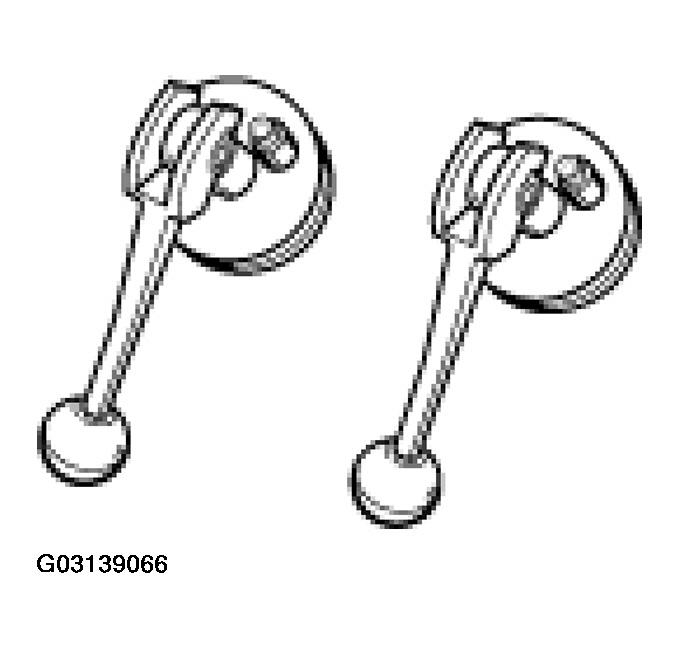

Item 1: Plug for exhaust system leak test

Fig 1: Identifying Exhaust System Leak Test Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

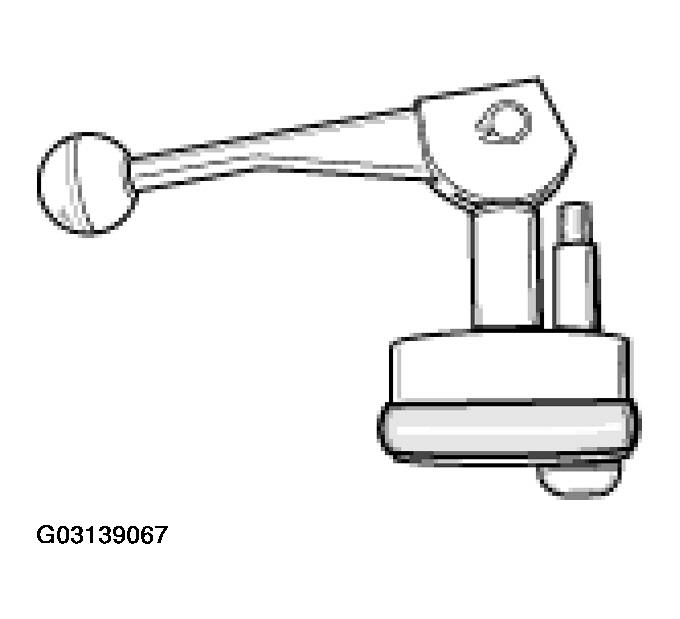

Clamping position: rubber gasket constricted

Fig 2: Identifying Clamping Position (Rubber Gasket Constricted)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item	Special tool designation	Remarks
1		Replacement rubber gaskets must be obtained from the manufacturer (details on the underside of the plug).
2	Leak-locating spray	Example, TPS674 test spray from TEGA in Wurzburg
