Removing switch for seat adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

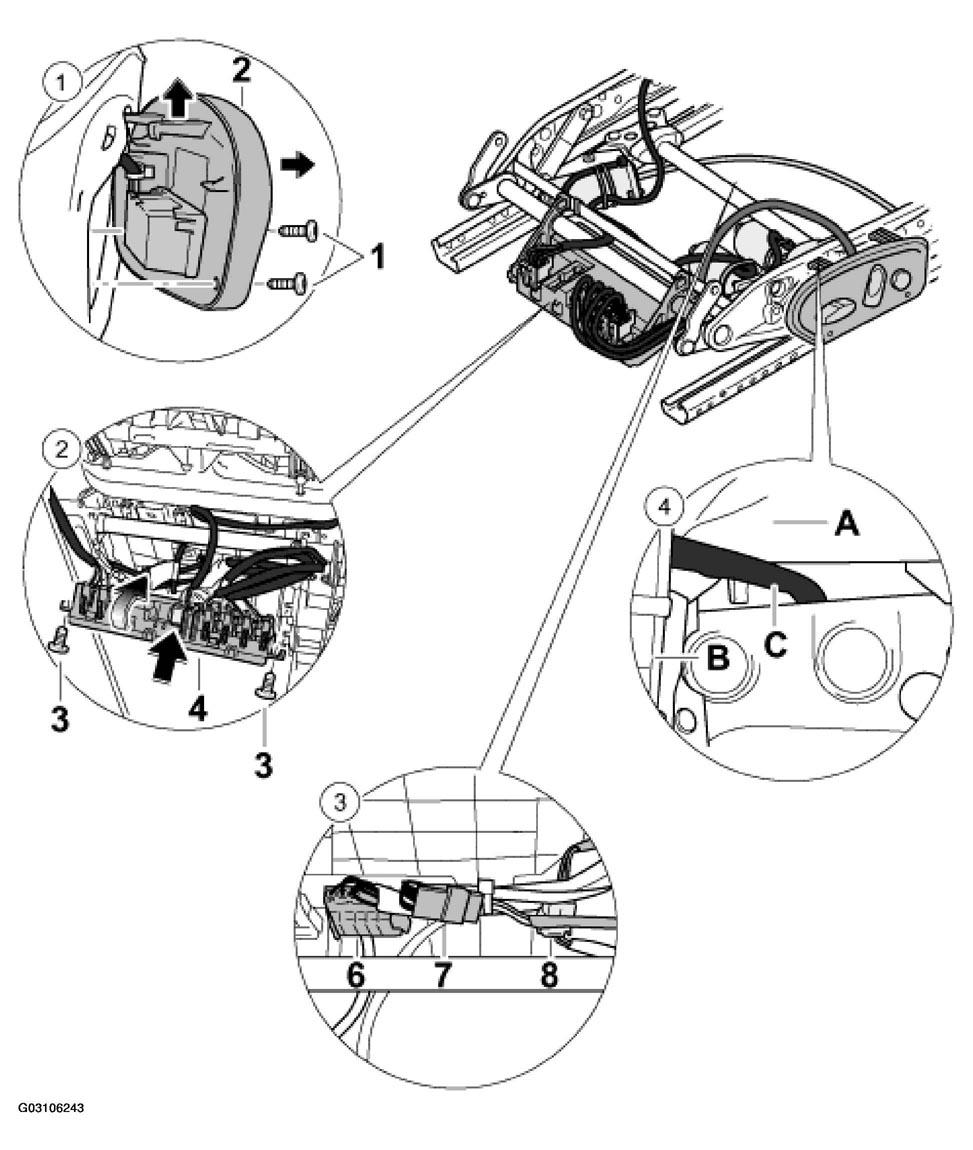

Fig 1: Removing Switch For Seat Adjustment
G03106243Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING PROCEDURE FOR SWITCH FOR SEAT ADJUSTMENT

No. Procedure Instructions
  Removing front seat. See REMOVING AND INSTALLING FRONT SEAT  .
1 Removing switch -2-  . See Fig 1 . Unscrew fastening screws -1-2-arrow-  . See Fig 1 .
2 Control module -4-  . See Fig 1 . Undo fastening screws -3-4-arrow-  . See Fig 1 .
3 Plug connection -6, 7, 8-  . See Fig 1 . Pull plugs below seat -6-7-8-  . See Fig 1 .
4 Lead route between seat cushion and seat frame. -A-  . See Fig 1 .
