Installing switch for seat adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

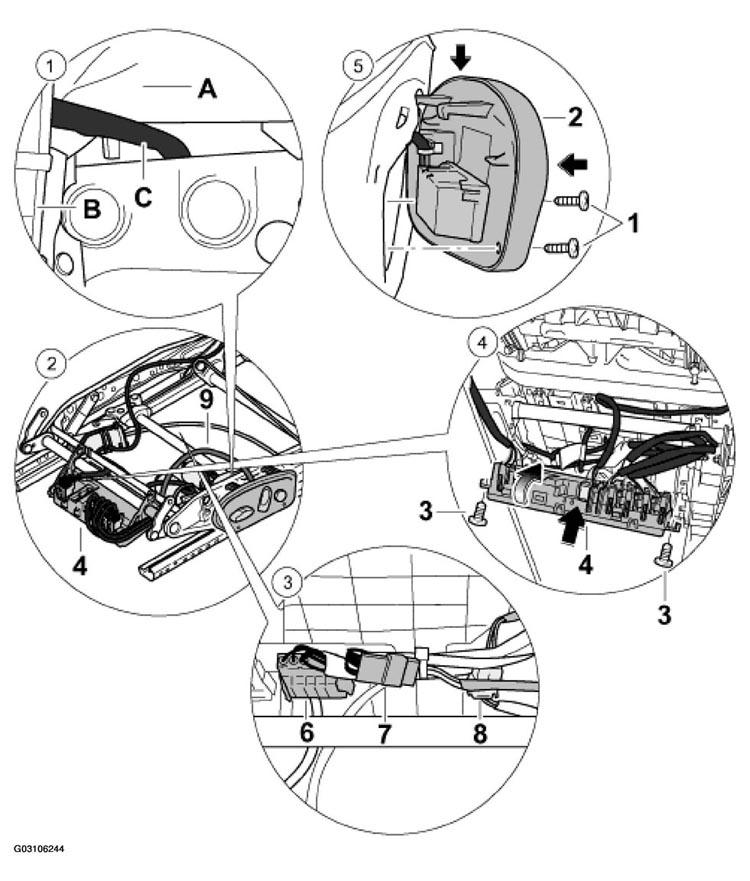

Fig 1: Installing Switch For Seat Adjustment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING PROCEDURE FOR SWITCH FOR SEAT ADJUSTMENT

No.	Procedure	Instructions
1	Line -C-B- . See Fig 1 .	Push the plugs of line -C-A . See Fig 1 .
2	Line route -9- . See Fig 1 .	In connection with the seat memory control module, lay the line -9-4- . See Fig 1 .
3	Plug connection -6, 7, 8- . See Fig 1 .	Plug connection without control module for seat memory. Join plugs for -6-7-8- . See Fig 1 .
4	Plug connection -arrow-4- . See Fig 1 .	Clip plugs on to each other starting on the right, natural, blue, black and plug on to the control module -arrow-4-3- . See Fig 1 .
5	Installing switch -2- . See Fig 1 .	Insert the switch -in direction of arrow-1- . See Fig 1 .
	Installing front seat	See REMOVING AND INSTALLING FRONT SEAT .
