Removing front seat
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING PROCEDURE FOR FRONT SEAT
| No. | Procedure | Instructions |
|---|---|---|

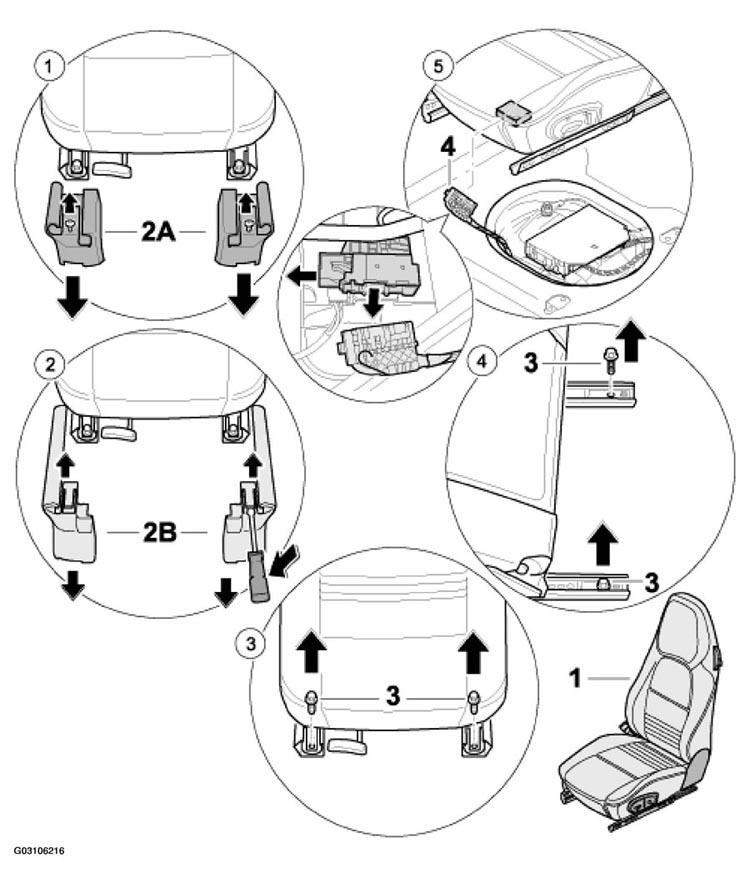

| 1 | Removing seat rail cover -2A- . See Figure . | Unscrew the sheetmetal screws out of the seat rail cover at the front -2A-2A- . See Figure . |
| 2 | Removing seat rail cover -2B- . See Figure . | Insert a screwdriver under the locking tabs and press lightly upwards. -2B- . See Figure . |
| 3 | Undoing seat screws at front | Move seat to its rear limit position and undo the front M10 x 28 Torx screws -3- . See Figure . |
| 4 | Undoing seat screws at rear | Move seat to its front limit position and undo the M10 x 28 Torx screws -3- . See Figure . |
| 5 | Disconnecting the electrical plug connection | Release plug connector locking device on the side -arrow- . See Figure . |
