Installing front seat
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING PROCEDURE FOR FRONT SEAT
| No. | Procedure | Instructions |
|---|---|---|

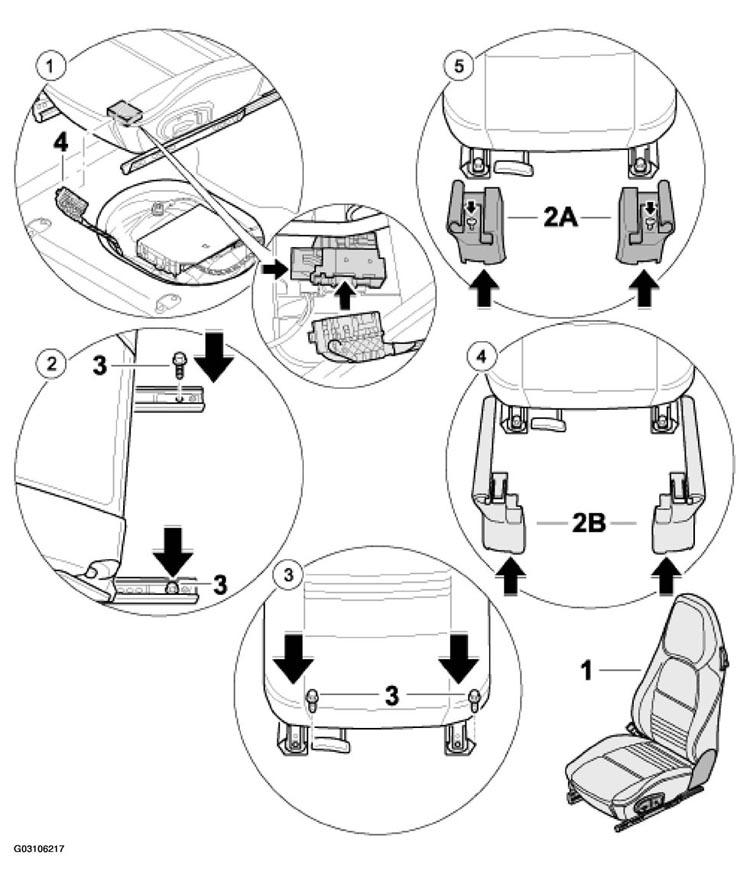

| 1 | Connecting electrical plug connection | Join the plug connection-4-arrow- . See Fig 1 . |
| 2 | Fitting seat screws at rear | Position seat rails on the seat baseframe, screw the rear M10 x 28 Torx screws -3-65 N.m- . See Fig 1 . |
| 3 | Fitting seat screws at front | Move seat to its rear limit position, screw the front M10 x 28 Torx screws -3-65 N.m- . See Fig 1 . |
| 4 | Fitting seat rail cover -2B- . See Fig 1 . | Push seat rail cover -2B- . See Fig 1 . |
| 5 | Fitting seat rail cover -2A- . See Fig 1 . | Push seat rail cover -2A- . See Fig 1 . |
