Removing front cushion carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

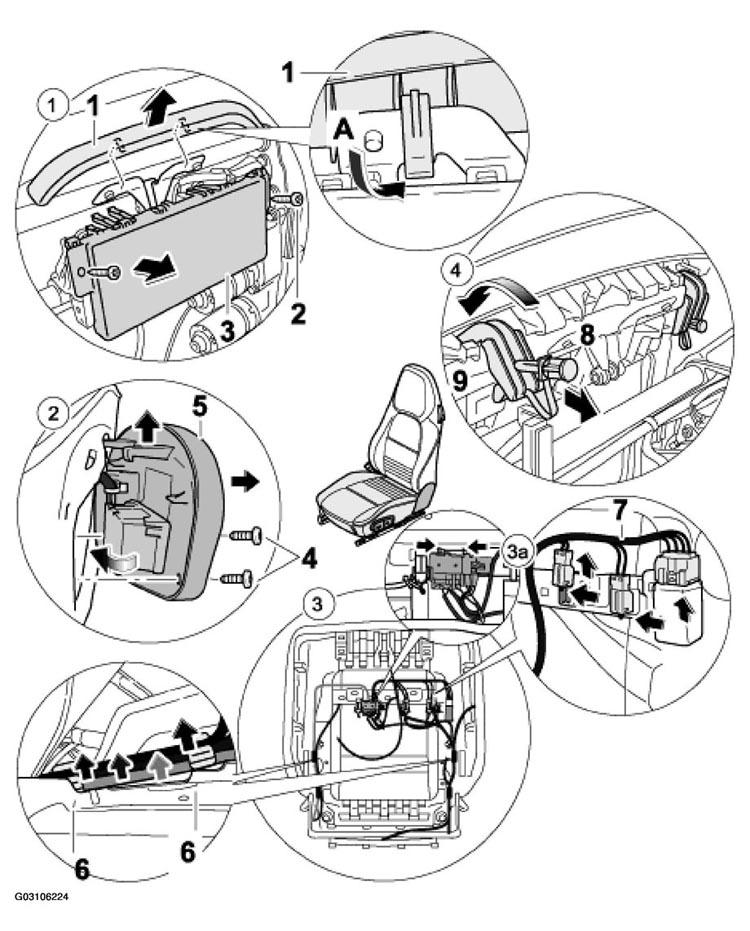

Fig 1: Removing Front Cushion Carrier Components
G03106224Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING PROCEDURE FOR FRONT CUSHION CARRIER

No. Procedure Instructions
1 Removing control module and cover Lift both holders of the cover -1-direction of arrow A-2-9-  . See Fig 1 .
2 Removing switch for seat adjustment Unscrew fastening screw -4-5-arrow-direction of arrow-  . See Fig 1 .
3 Disconnecting wiring harness Disconnect electrical plug connection of the seat heating, unclip the lines from the metal clips -6-  . See Fig 1 .
3a Removing wiring harness Remove wiring harness -7-arrow-  . See Fig 1 .
4 Removing seat cushion from seat frame Insert the retainer -8-9-9-  . See Fig 1 .
