Installing front cushion carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

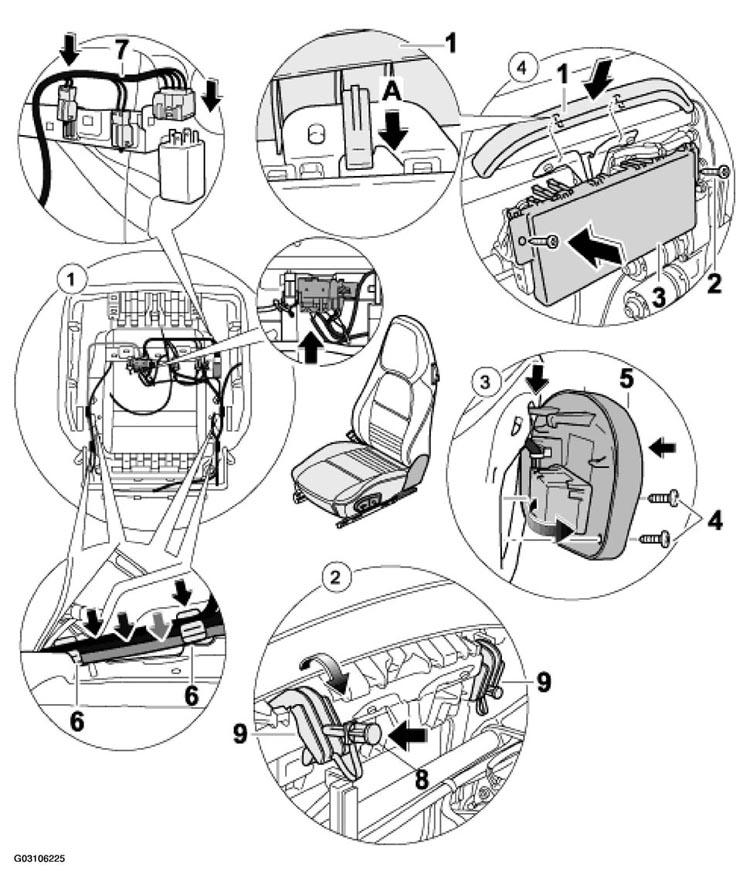

Fig 1: Installing Front Cushion Carrier Components
G03106225Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING PROCEDURE FOR FRONT CUSHION CARRIER

No. Procedure Instructions
1 Installing wiring harness Plug in electrical plug connection of the seat heating -7-direction of arrow-6-  . See Fig 1 .
2 Installing seat cushions on to seat frame Position the seat cushion on to the seat frame and clip the plastic clip -9-8-  . See Fig 1 .
3 Installing switch for seat adjustment Pull switch for seat adjustment -5-4-  . See Fig 1 .
4 Installing control module and cover Position control module -3-2-1-direction of arrow A-  . See Fig 1 .
