Removing electric motor for seat adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

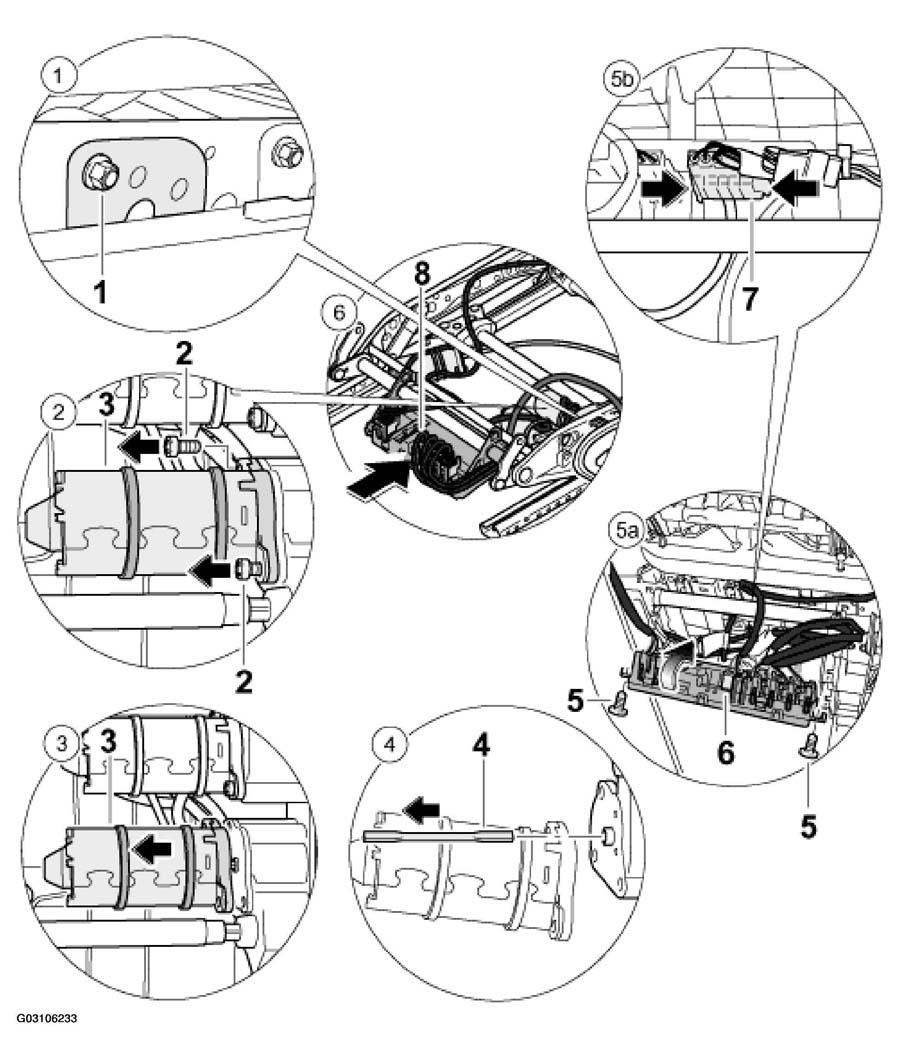

Fig 1: Removing Electric Motor For Seat Adjustment
G03106233Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING PROCEDURE FOR ELECTRIC MOTOR FOR SEAT ADJUSTMENT

No. Procedure Instructions
  Removing front seat See REMOVING AND INSTALLING FRONT SEAT  .
1 Lock nut -1-  . See Fig 1 . Unscrew.
2 Fastening screws -2-  . See Fig 1 . Unscrew.
3 Electric motor -3-  . See Fig 1 . Remove.
4 Input shaft -4-  . See Fig 1 . Remove and check for damage.
5a Control module -6-  . See Fig 1 . Unscrew fastening screws -5-6-arrow-  . See Fig 1 .
5b Plug connection -7-  . See Fig 1 . Press plugs together in -direction of arrow-  . See Fig 1 .
6 Electrical line Cut the tie wrap using side cutters, follow cable routing and pull off the plug -8-  . See Fig 1 .
