Installing electric motor for seat adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING PROCEDURE FOR ELECTRIC MOTOR FOR SEAT ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|

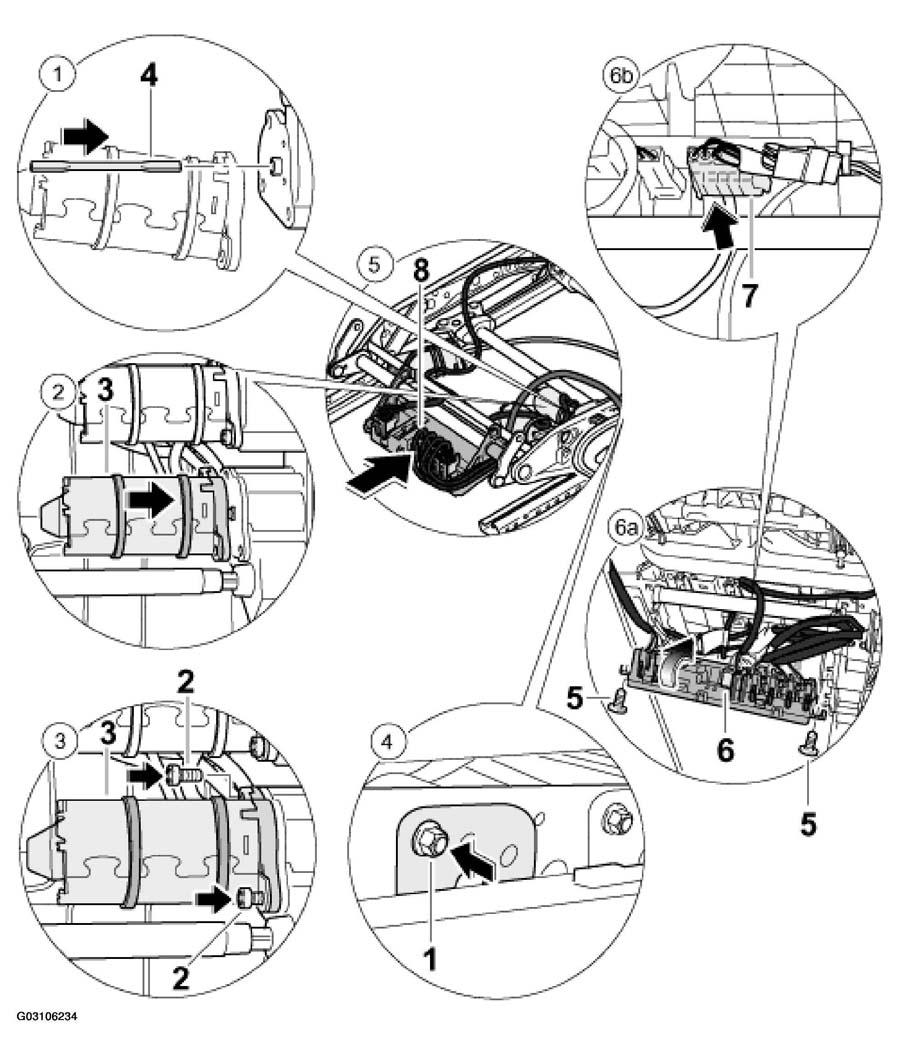

| 1 | Input shaft -4- . See Fig 1 . | Insert the input shaft -4- . See Fig 1 . |
| 2 | Electric motor -3- . See Fig 1 . | Push motor -3- . See Fig 1 . |
| 3 | Fastening screws -2- . See Fig 1 . | Position electric motor -3-2- . See Fig 1 . |
| 4 | Lock nut | Tighten. Tightening torque: 7 N.m (5.0 ftlb.) |
| 5 | Plug -8- . See Fig 1 . | Observe line routing and push in plug -8- . See Fig 1 . |
| 6a | Control module -6- . See Fig 1 . | Engage control module -6-5- . See Fig 1 . |
| 6b | Plug connection -7- . See Fig 1 . | Push crimp sockets into the plug -7-7- . See Fig 1 . |
| Installing front seat | See REMOVING AND INSTALLING FRONT SEAT . |
