Removing electric motor for rear seat height adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING PROCEDURE FOR ELECTRIC MOTOR FOR REAR SEAT HEIGHT ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|
| Removing front seat | See REMOVING AND INSTALLING FRONT SEAT . | |

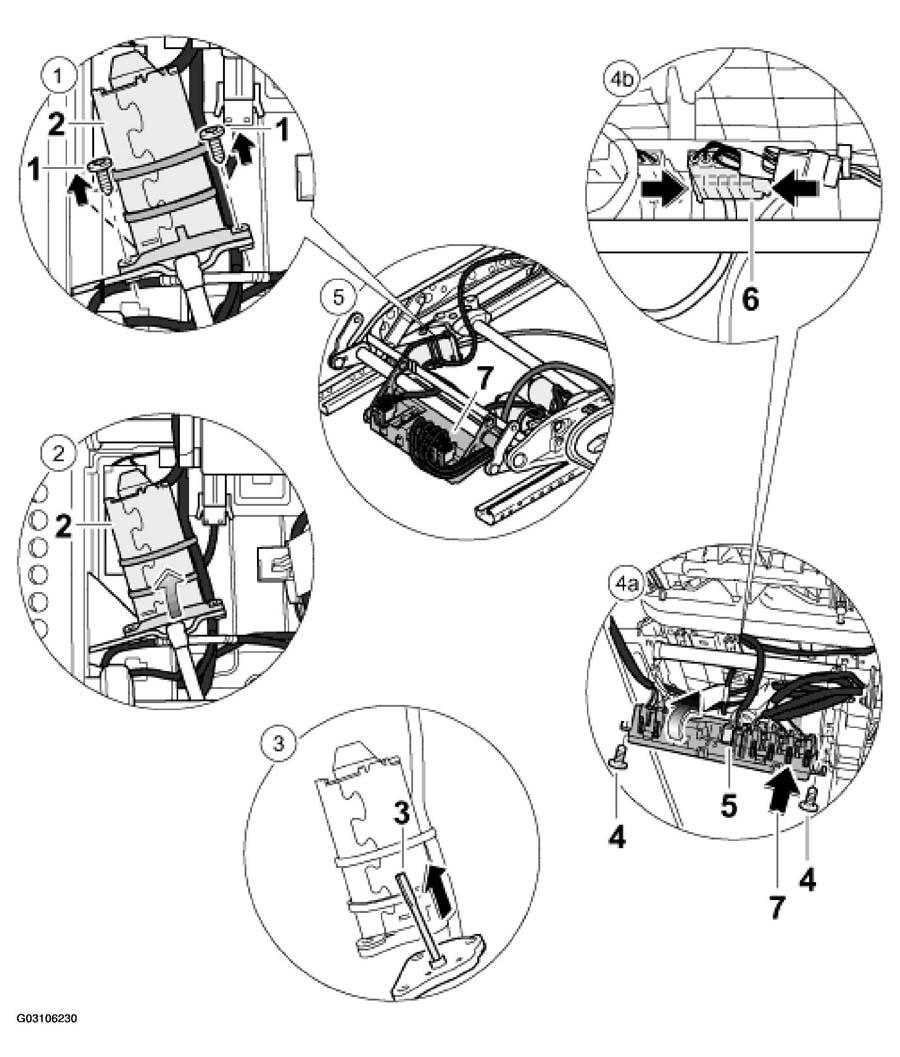

| 1 | Fastening screws -1- . See Fig 1 . | Unscrew. |
| 2 | Electric motor -2- . See Fig 1 . | Remove in -direction of arrow- . See Fig 1 . |
| 3 | Input shaft -3- . See Fig 1 . | Pull out shaft -3- . See Fig 1 . |
| 4a | Control module -5- . See Fig 1 . | Unscrew both fastening screws -4-5-arrow 7- . See Fig 1 . |
| 4b | Plug connection -6- . See Fig 1 . | Press plugs -6-direction of arrow- . See Fig 1 . |
| 5 | Electrical line | Cut the tie wrap with side cutters, follow the cable routing and remove completely. |
