Removing electric motor for front seat height adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING PROCEDURE FOR ELECTRIC MOTOR FOR FRONT SEAT HEIGHT ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|
| Removing front seat | See REMOVING AND INSTALLING FRONT SEAT . | |

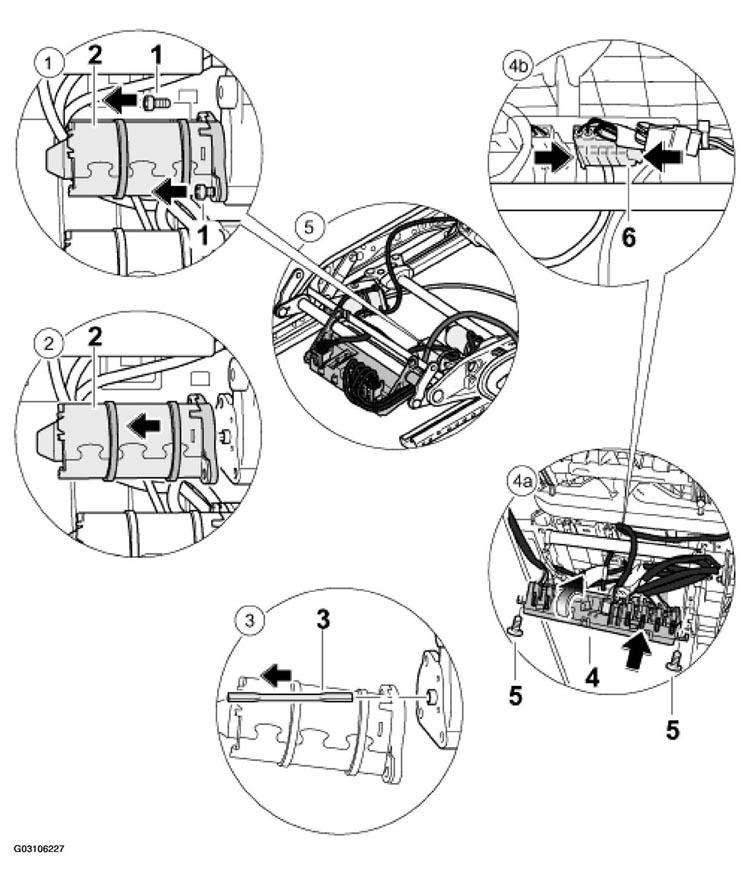

| 1 | Fastening screws -1- . See Fig 1 . | Unscrew. |
| 2 | Electric motor -2- . See Fig 1 . | Remove. |
| 3 | Input shaft -3- . See Fig 1 . | Remove and check for damage. |
| 4a | Control module -4- . See Fig 1 . | Undo screws -5-4-arrow- . See Fig 1 . |
| 4b | Plug connection -6- . See Fig 1 . | Press plugs -6-arrow- . See Fig 1 . |
| 5 | Electric line | Cut tie wrap on motor with side cutters and remove unit. |
