Installing electric motor for front seat height adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING PROCEDURE FOR ELECTRIC MOTOR FOR FRONT SEAT HEIGHT ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|

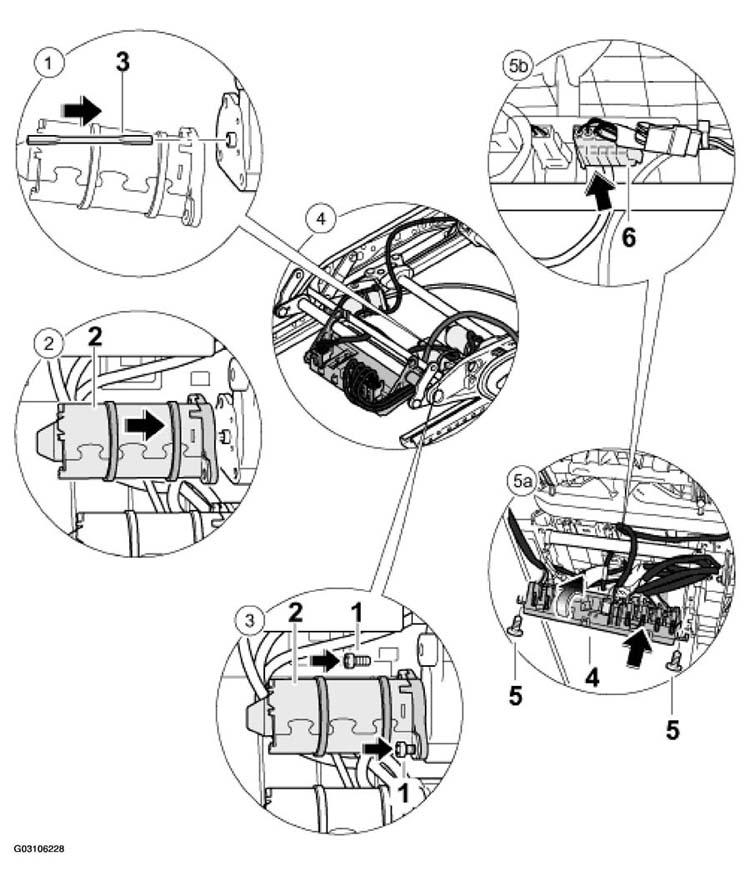

| 1 | Input shaft -3- . See Fig 1 . | Insert the input shaft -3- . See Fig 1 . |
| 2 | Electric motor -2- . See Fig 1 . | Push electric motor -2-3- . See Fig 1 . |
| 3 | Fastening screws -1- . See Fig 1 . | Position electric motor -2-1- . See Fig 1 . |
| 4 | Electric line | Observe line routing. |
| 5a | Control module -4- . See Fig 1 . | Insert plug on control module -4-arrow-5- . See Fig 1 . |
| 5b | Plug connection -6- . See Fig 1 . | Push crimp sockets into the plug -6- . See Fig 1 . |
| Installing front seat | See REMOVING AND INSTALLING FRONT SEAT . |
