Routing of wiring harness for the backrest adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

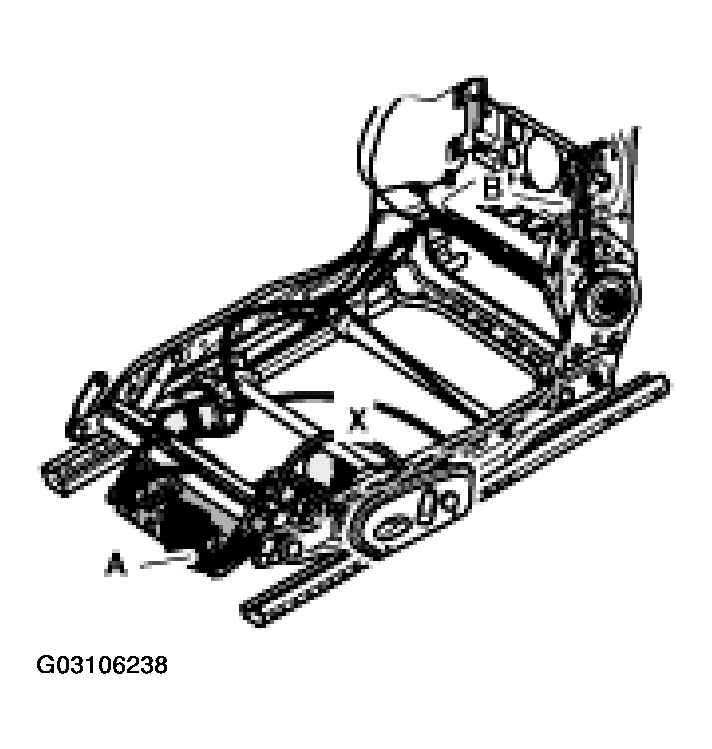

Fig 1: Routing Of Wiring Harness For Backrest Adjustment
G03106238Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. -A-  in Fig 1 . Plug on the control module for the memory seat adjustment.
  2. -B-  in Fig 1 . Plug on the backrest adjustment motor.
  3. -X-  in Fig 1 . Plug connection - without control module for the memory seat adjustment.
