Removing electric motor for the backrest adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING PROCEDURE OF ELECTRIC MOTOR FOR BACKREST ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|
| Removing front seat | See REMOVING AND INSTALLING FRONT SEAT . | |
| Removing covering for front backrest | See REMOVING COVER FOR THE FRONT BACKREST FRAME | |

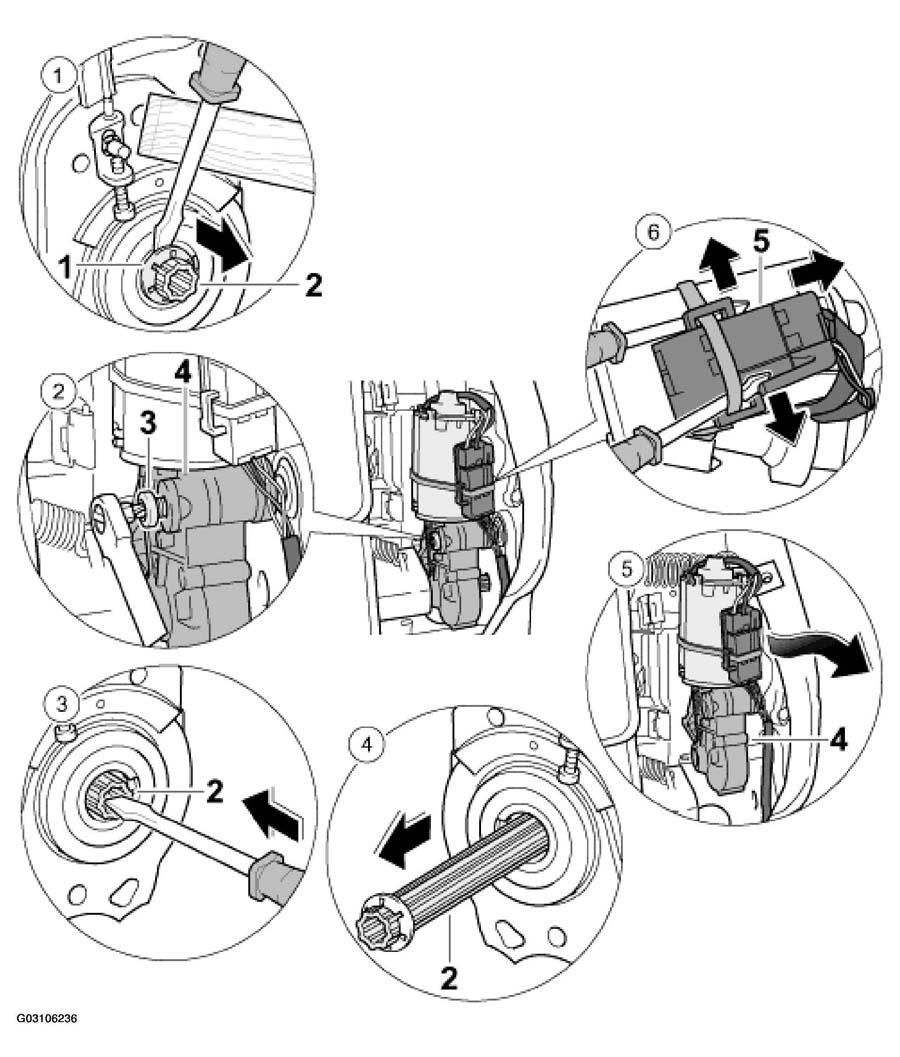

| 1 | Clamping washer -1- . See Fig 1 . | Lever the clamping washer -1-2- . See Fig 1 . |
| 2 | Undoing fastening screws -3- . See Fig 1 . | Unscrew fastening screw -3-4- . See Fig 1 . |
| 3 | Input shaft -2- . See Fig 1 . | Push input shaft -2- . See Fig 1 . |
| 4 | Input shaft -2- . See Fig 1 . | Pull out input shaft -2- . See Fig 1 . |
| 5 | Backrest motor -4- . See Fig 1 . | Remove backrest motor forward -direction of arrow- . See Fig 1 . |
| 6 | Electrical plug connection -5- . See Fig 1 . | Push both locking tabs of the plug connection outwards using a screwdriver and pull the plug -5- . See Fig 1 . |
