Removing And Installing Instrument Panel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before removing the instrument panel, the instrument panel must be disassembled. See DISASSEMBLING THE INSTRUMENT PANEL .

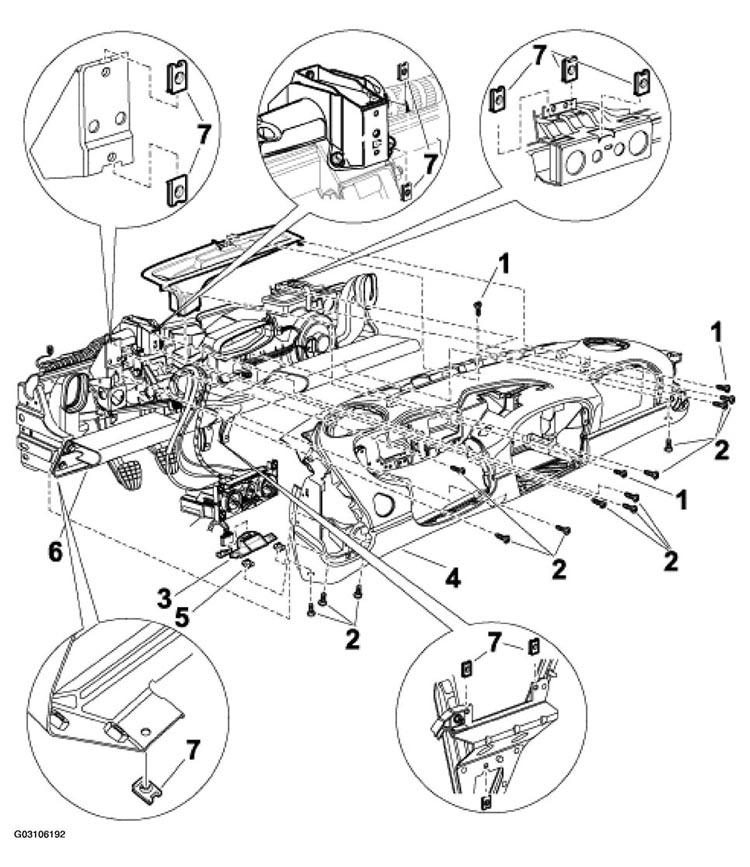

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Fastening screws | 3 | Unscrew fastening screws -1-4- (1) | Screw the instrument panel -4-1- (1) | ||
| 2(1) | Fastening screws | 13 | Undo fastening screws -2-4- (1) | Screw the instrument panel -4-2- (1) | ||
| 3(1) | On-Board Diagnosis (OBD) socket | 1 | Unscrew fastening screws -2- (1) | Tighten the fastening screws -2- (1) | ||
| 4(1) | Instrument panel | 1 | See: Position -1 and 2- (1) | See: Position -1 and 2- (1) | ||
| 5(1) | Sheetmetal nut | 2 | Unscrew fastening screws -2- (1) | Inspect and replace if necessary. | ||
| 6(1) | Instrument panel bracket with knee protector strip | 1 | ||||
| 7(1) | Sheetmetal nut | 11 | Unscrew fastening screws -1 and 2-4- (1) | Inspect and replace if necessary. | ||
|
||||||
