Removing And Installing Side-Panel Lining
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

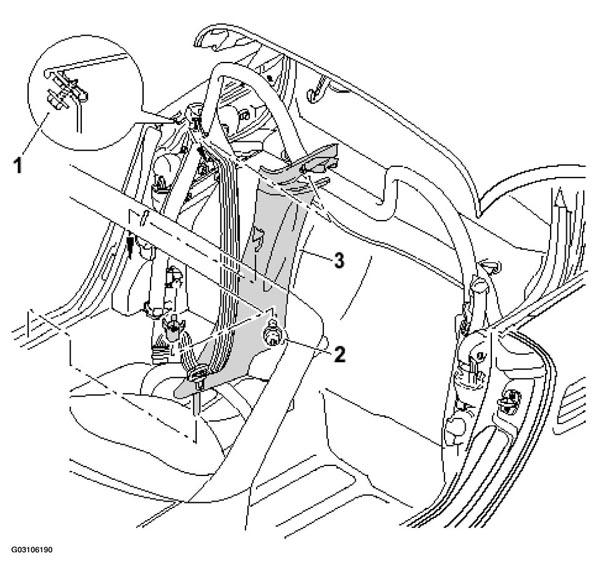

REMOVAL AND INSTALLATION PROCEDURE FOR SIDE-PANEL LINING
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Fastening screw | 1 | Unscrew fastening screw -1- (1) | Screw in fastening screw -1- (1) | ||
| 2(1) | Fastening screw | 1 | Undo fastening screw two turns -2- (1) | Tighten fastening screw -2- (1) | ||
| 3(1) | Side-panel lining | 1 | Lift side-panel lining -3- (1) | Connect electrical plug connection of the rear window heater. -3- (1) insert retaining lug of the side-panel lining -3- (1) |
||
| 4(1) | Holder | 1 | Check, replace if necessary. | |||
|
||||||
