Removing And Installing Rear Luggage Compartment Trim
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

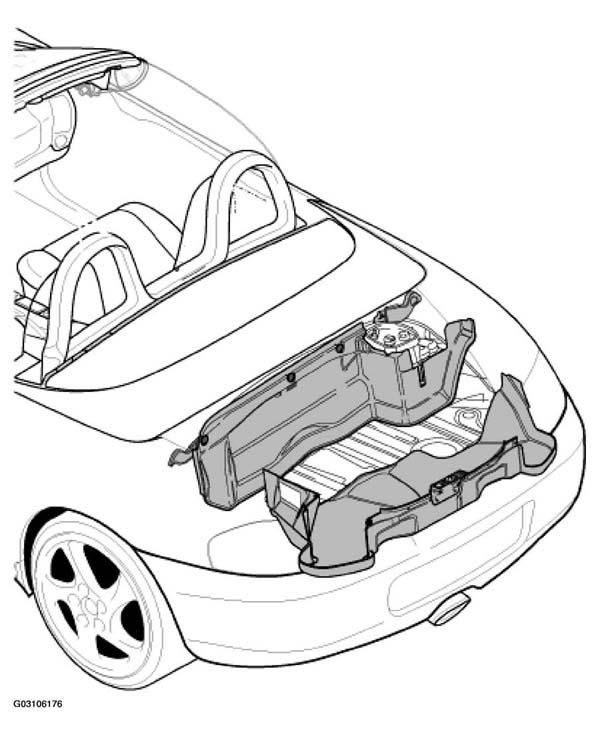

REMOVING AND INSTALLING PROCEDURE FOR REAR LUGGAGE COMPARTMENT TRIM

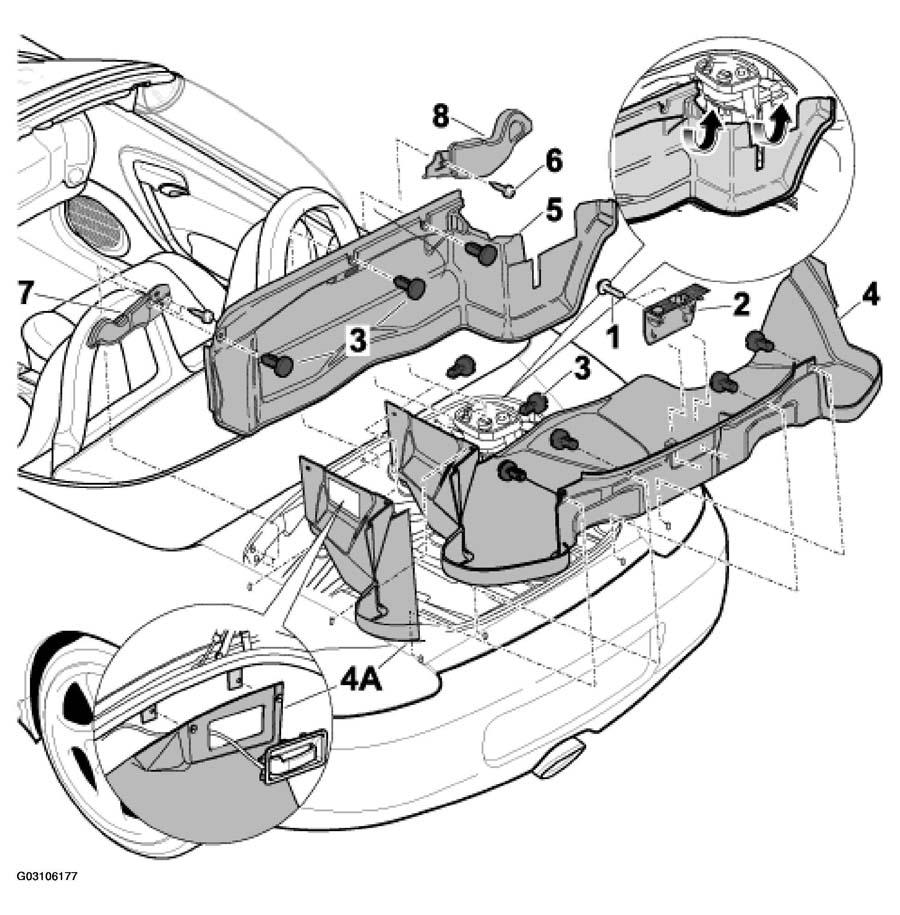

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Fastening screws | 2 | Unscrew. | Screw in. | ||
| 2(1) | Lock trim | 1 | ||||
| 3(1) | Plug | 7 | Removal tool: | |||
| 4(1) | Carpet lining | 1 | Using the plugs -3-4-2-1- (1) | |||
| 4A(1) | Carpet lining for emergency release USA and Canada vehicles |
1 | Refer to REMOVING AND INSTALLING FRONT EMERGENCY RELEASE . | See: No. 4 | ||
| 5(1) | Carpet lining | 1 | Place the carpet lining -5-in direction of arrow-5-3- (1) | |||
| 6(1) | Fastening screws | 2 | Unscrew. | Screw in. | ||
| 7(1) | Forced-air venting, left | 1 | ||||
| 8(1) | Forced-air venting, right | 1 | ||||
|
||||||
