Removing And Installing Rear Luggage Compartment Insulation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

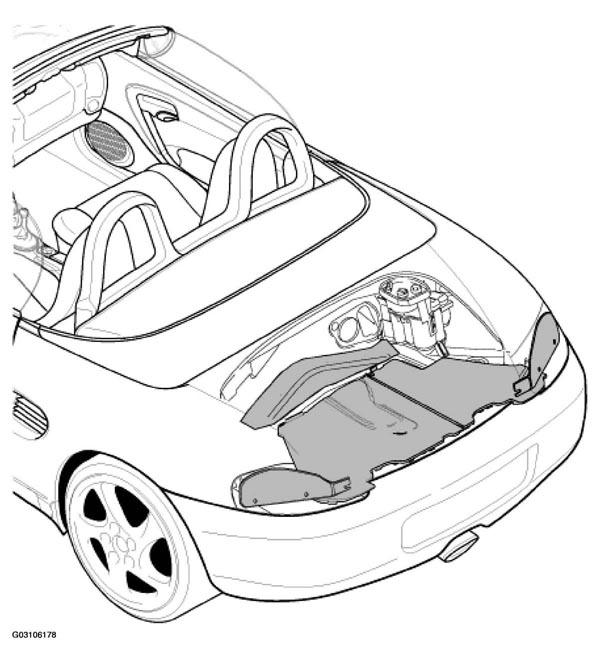

REMOVAL AND INSTALLATION PROCEDURE FOR REAR LUGGAGE COMPARTMENT INSULATION

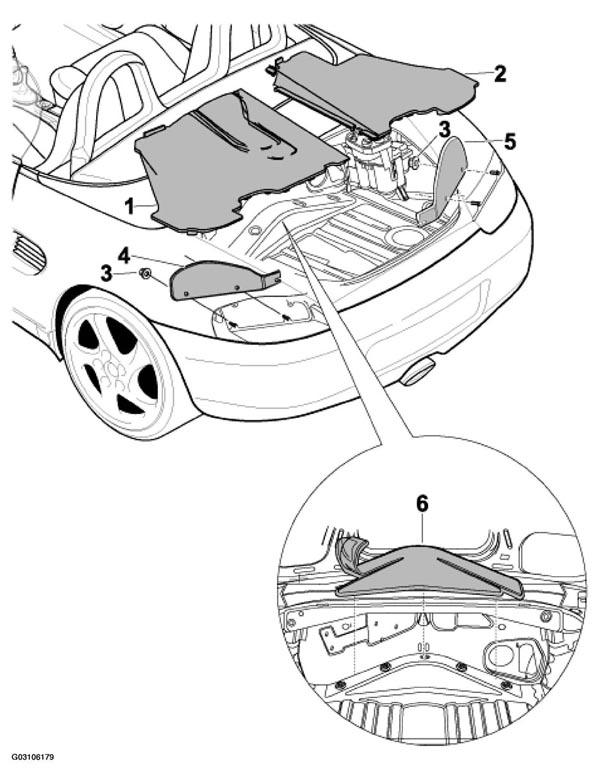

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Luggage compartment carpet panel, left rear | 1 | Remove. | Insert. | ||
| 2(1) | Luggage compartment carpet panel, right rear | 1 | Remove. | Insert. | ||
| 3(1) | Plastic nut | 4 | Unscrew. | Screw in. | ||
| 4(1) | Cover, left tail light | 1 | ||||
| 5(1) | Cover, right tail light | 1 | ||||
| 6(1) | Rear cross member insulation | 1 | Carefully pull off the rear cross member insulation -6- (1) | Pull off the transparent film before fitting. | ||
|
||||||
