Removing And Installing Insulation For Convertible Top Compartment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

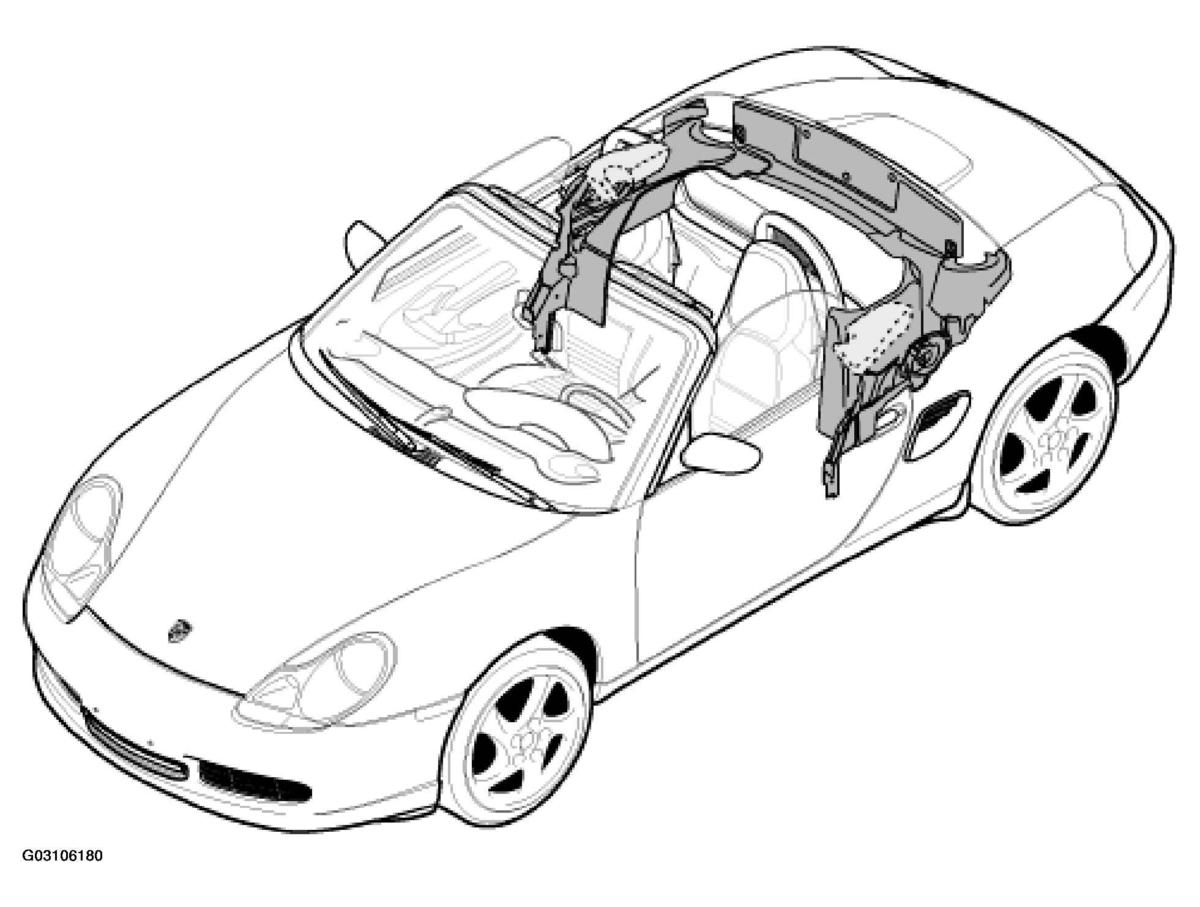

- Before removing the insulation -3, 4, 5, 6, 7, 8- , the following components must be removed. See Fig 2 .
Refer to REMOVING AND INSTALLING CONVERTIBLE TOP .
Refer to REMOVING AND INSTALLING CONVERTIBLE TOP GEAR .
NOTE:
- If the insulation is damaged, such as cracks, it must be replaced.

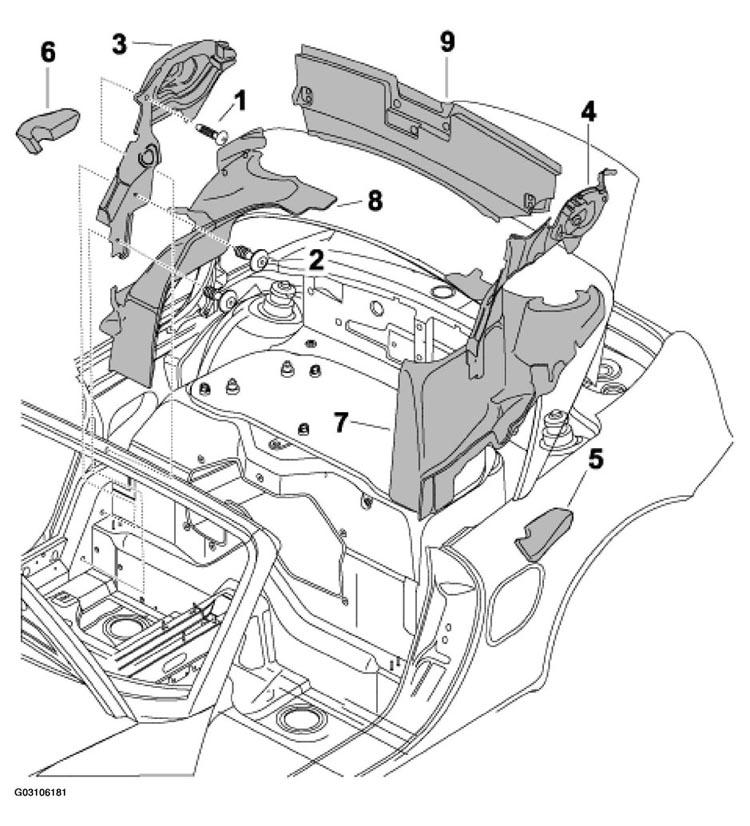

REMOVING AND INSTALLING PROCEDURE FOR INSULATION FOR CONVERTIBLE TOP COMPARTMENT
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Mounting plugs | 4 | Pull out. | |||
| 2(1) | Mounting plugs | 2 | Pull out. | |||
| 3(1) | Insulation, right, convertible-top rest on upper side | 1 | Carefully pull the insulation off -3- (1) | Puncture the mounting plugs -2- (1) | ||
| 4(1) | Insulation, left, convertible-top rest on upper side | 1 | Carefully pull the insulation off -4- (1) | Puncture the mounting plugs -2- (1) | ||
| 5(1) | Left roll-over bar seal | 1 | Carefully pull the insulation off -5- (1) | |||
| 6(1) | Right roll-over bar seal | Carefully pull the insulation off -6- (1) | ||||
| 7(1) | Insulation, left, convertible-top rest on lower side | 1 | Carefully pull the insulation off -7- (1) | Pull off the transparent film before fitting. | ||
| 8(1) | Insulation, right, convertible-top rest on lower side | 1 | Pull out carefully. | Pull off the transparent film before fitting. | ||
| 9(1) | Rear convertible top rest insulation | Pull off the transparent film before fitting. |
||||
|
||||||
