Removing And Installing Trims Units
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

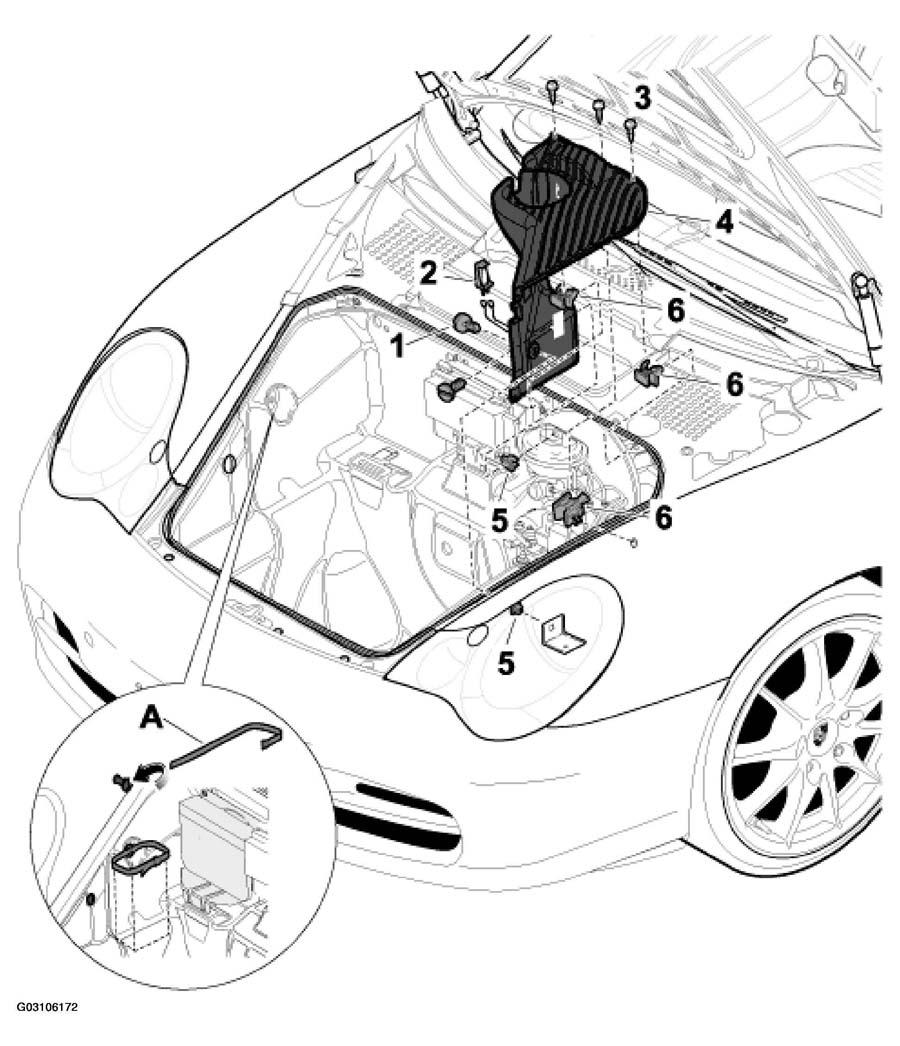

REMOVING AND INSTALLING PROCEDURE FOR TRIMS UNITS
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Cam | 2 | Turn 90° and remove. | Position and turn 90°. | ||
| 2(1) | Interior light | 1 | Press out. | Press in. | ||
| 3(1) | Fastening screws | 3 | Unscrew. | Screw in. | ||
| 4(1) | Trim units | 1 | Unscrew fastening screws -3- (1) | Screw in fastening screws -3- (1) | ||
| 5(1) | Holder | 2 | ||||
| 6(1) | Holder | 2 | ||||
| A(1) | Restraining strap | 1 | Fasten the emergency kit with the restraining strap -A- (1) | |||
|
||||||
