Removing And Installing Carpet Lining With PSM
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

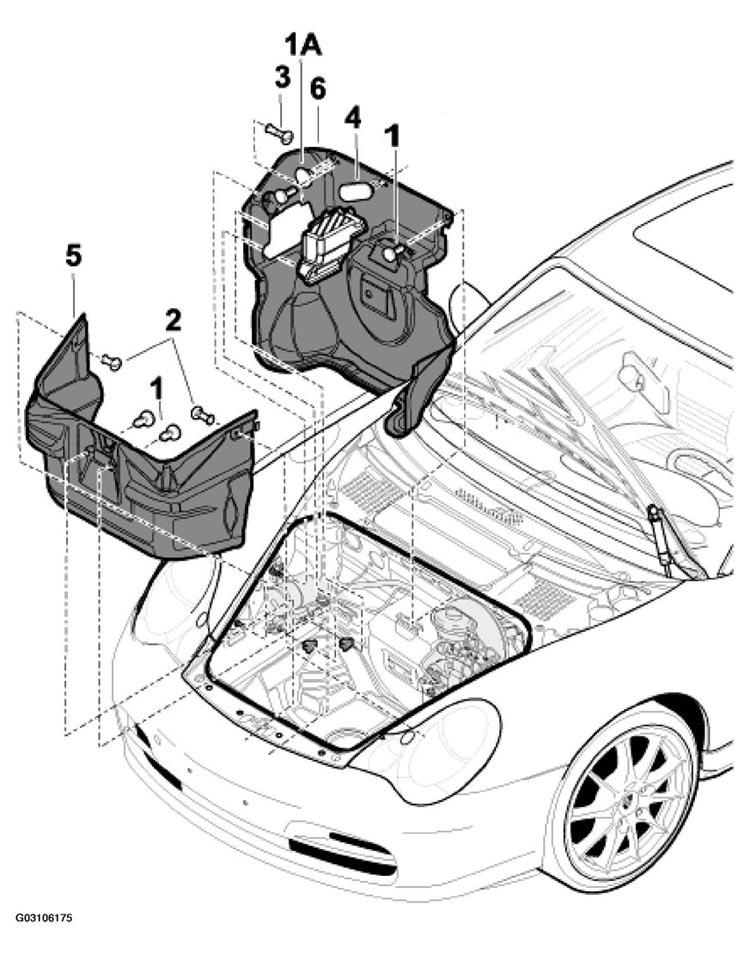

REMOVING AND INSTALLING PROCEDURE FOR CARPET LINING WITH PSM
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1A(1) | Closure cap | 2 | Removal tool: | Press in. | ||
| 1(1) | Plug | 4 | Removal tool: | Press in. | ||
| 2(1) | Short plastic nuts | 1 | Unscrew. | Screw in. | ||
| 3(1) | Long plastic nuts | 3 | Unscrew. | Screw in. | ||
| 4(1) | Cover cap | 1 | ||||
| 5(1) | Front carpet lining | 2 | ||||
| 6(1) | Rear carpet lining | 2 | ||||
|
||||||
