Removing Loudspeaker, Airbag And Door Film
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

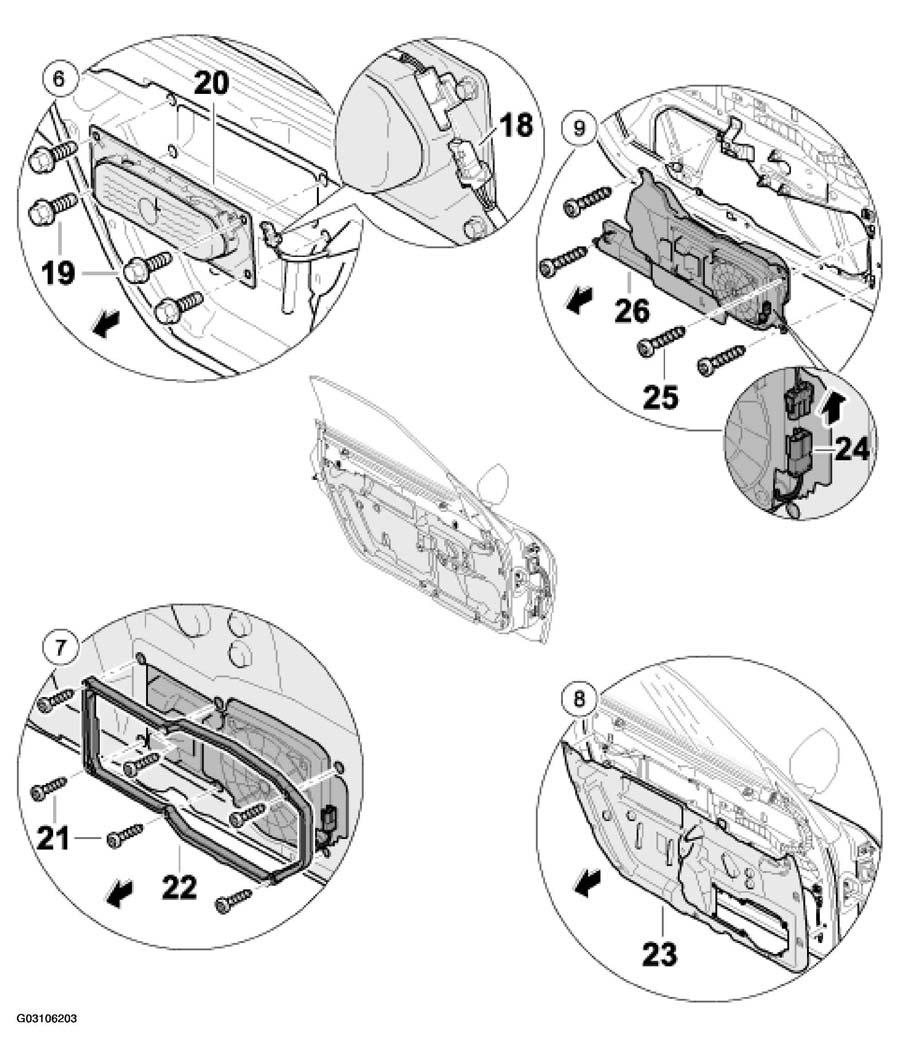

REMOVAL PROCEDURE FOR DOOR TRIM PANEL
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 6(1) | Removing airbag | Disconnect electrical plug connection -18-19-20- (1) | ||
| 7(1) | Removing frame | Unscrew fastening screws -21-22- (1) | ||
| 8(1) | Removing door sealing film | Carefully pull the door sealing film off -23- (1) | ||
| 9(1) | Removing sound box | Disconnect electrical plug connection from the sound box -24-25-26- (1) | ||
|
||||
