Installing Door Trim Panel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

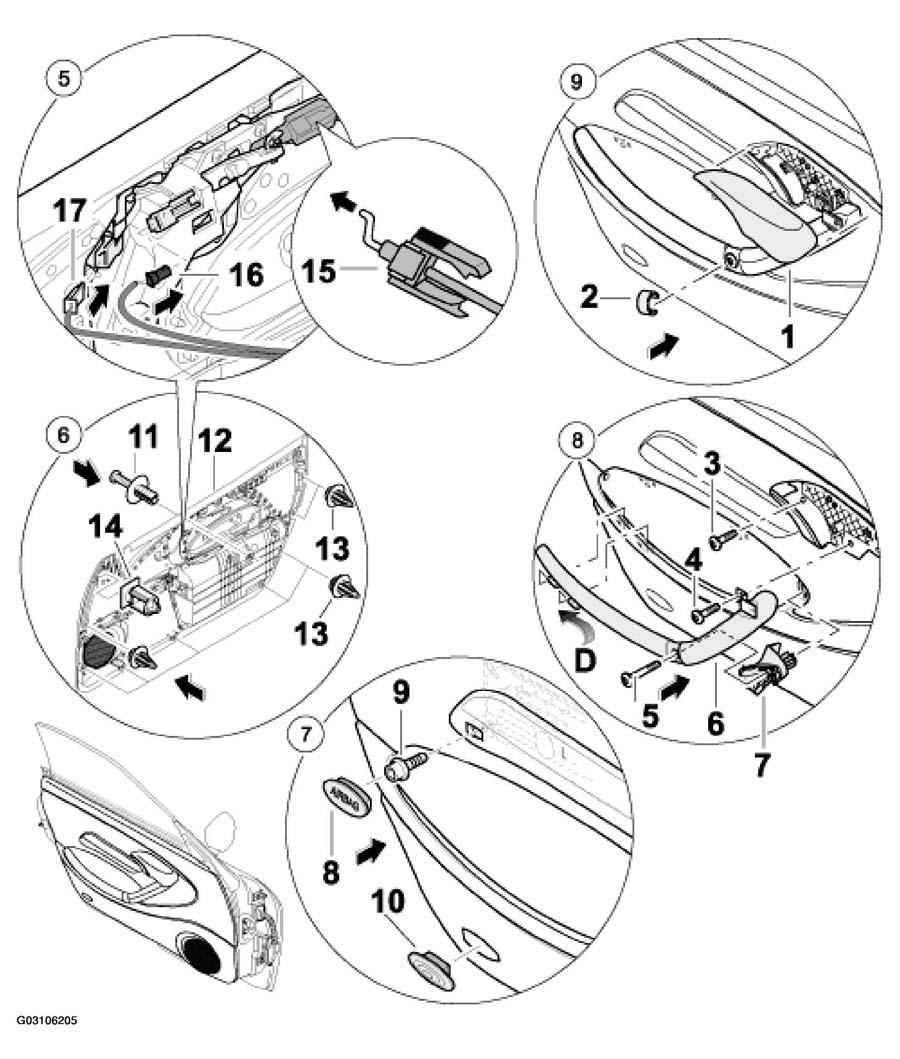

INSTALLATION PROCEDURE FOR DOOR TRIM PANEL
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 5(1) | Engaging bowden cable variant B. Connecting electrical plug connection. |
Engage bowden cable variant B -15-17, 16- (1) | ||
| 6(1) | Installing door trim panel | The clips -13, 14-11- (1) | ||
| 7(1) | Installing plastic cover (airbag) | Position fastening screws -9-5.9 N.m (4.5 ft.lb)-8-10- (1) | ||
| 8(1) | Installing the handle strip | Position the mounting on the door trim panel. Insert the handle strip into the door trim panel -arrow D-3, 4, 5- (1) | ||
| 9(1) | Installing cover | Place the cover ring -2-1- (1) | ||
|
||||
