Removing And Installing Cowl Panel Covers
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

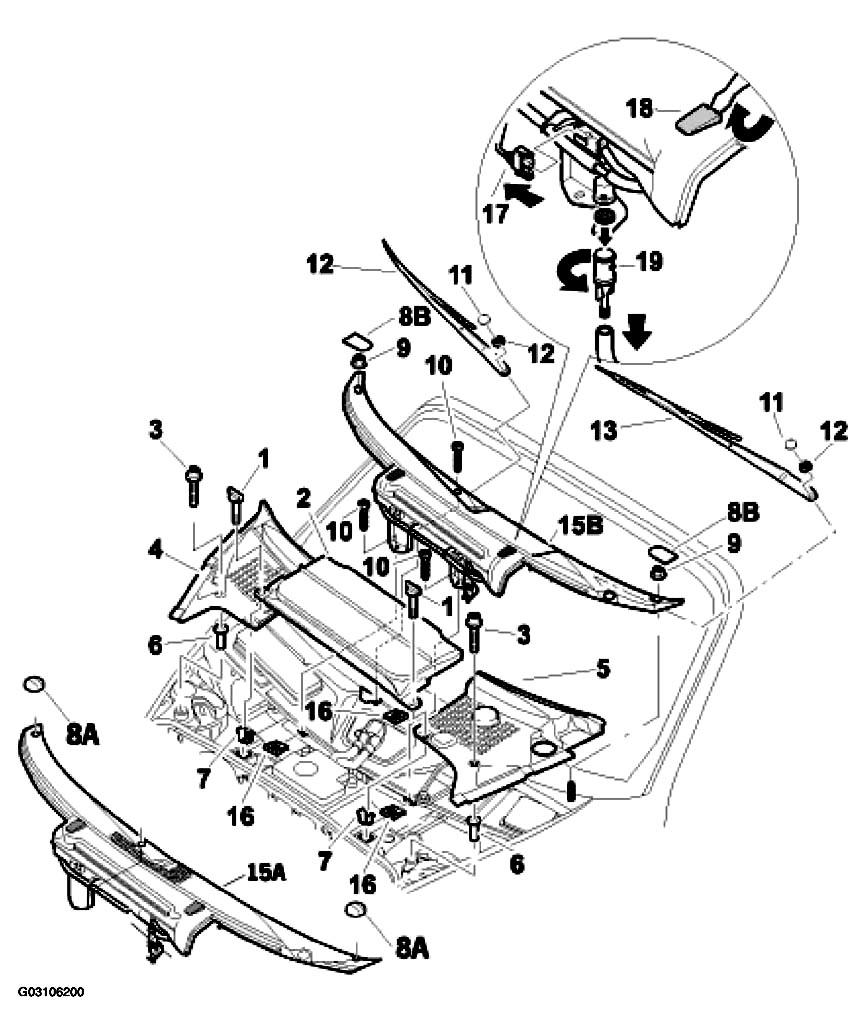

REMOVAL AND INSTALLATION COWL PROCEDURE FOR PANEL COVER
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Twist lock | 2 | ||||
| 2(1) | Battery cover | 1 | ||||
| 3(1) | Torx screw T25 M5 x 30 | 2 | ||||
| 4(1) | Water reservoir cover, right | 1 | ||||
| 5(1) | Water reservoir cover, left | 1 | ||||
| 6(1) | Dummy press-in nut | 2 | ||||
| 7(1) | Cam | 2 | Unclip. | Clip in. | ||
| 8A(1) | Cover cap up to model year 2000 | 2 | Position and press in. | Press out with a narrow screwdriver. | ||
| 8B(1) | Cover cap as from model year 2001 | 2 | Position and press in. | Press out with a narrow screwdriver. | ||
| 9(1) | T5 plastic nut | 2 | Check, replace if necessary. | |||
| 10(1) | Torx screw T20 x 20 | 3 | ||||
| 11(1) | Cover | 1 | ||||
| 12(1) | Nut | 2 | Undo. | Tightening torque: -17 N.m (13 ft.lb)- | ||
| 13(1) | Left wiper arm | 1 | ||||
| 14(1) | Right wiper arm | 1 | ||||
| 15A(1) | Cowl panel cover up to model year 2000 | 1 | ||||
| 15B(1) | Cowl panel cover as from model year 2001 | 1 | ||||
| 16(1) | Sheetmetal nut B4.8 | 3 | Adjust to centre of hole. | |||
| 17(1) | Electrical plug connection | 2 | Press locking tabs together and separate electrical plug connection. | Connect electrical plug connection. | ||
| 19(1) | Spray nozzle | 2 | Use a screwdriver to lift the spray nozzle at the front edge. Pull off water hose. | Push on water hose and press spray nozzle into the cowl panel cover. | ||
| 19(1) | T-piece (filter element) | 1 | Twist and pull off. Remove filter element. | Clean filter element if necessary. | ||
|
||||||
