Installing A-Pillar Trim
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING PROCEDURE FOR A-PILLAR TRIM

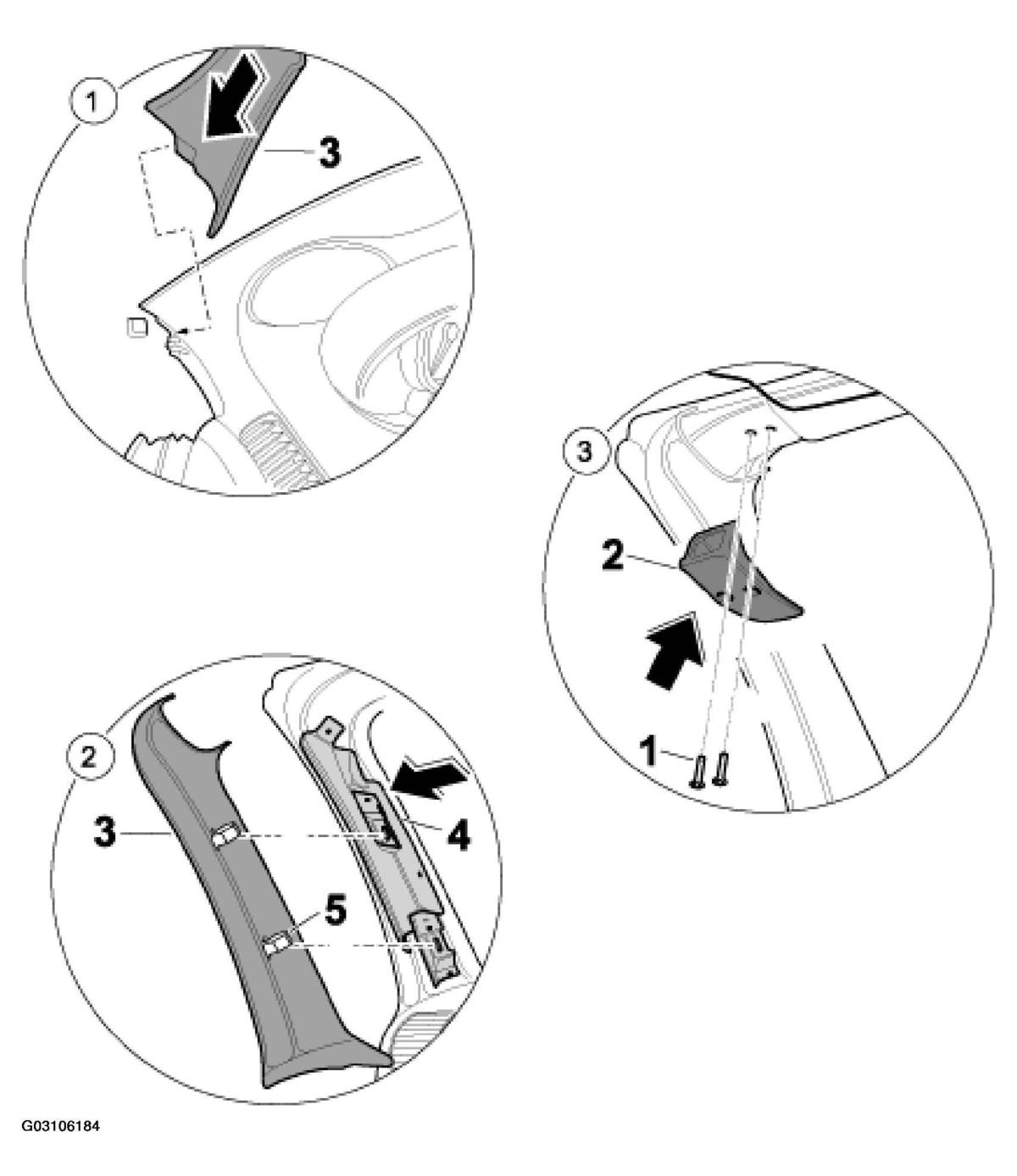

| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1(1) | Installing A-pillar trim | Before installation, check that the deformation element is seated properly -4-5-3-direction of the arrow- (1) | ||
| 2(1) | Clipping in A-pillar trim | Clip in the A-pillar trim -3-direction of arrow- (1) | ||
| 3(1) | Install convertible-top peg housing | In order to avoid rattling noises, each of the convertible-top peg housings on the left and right -2-1- (1) | ||
|
||||
