Removing The Regulator For Wipe Interval

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

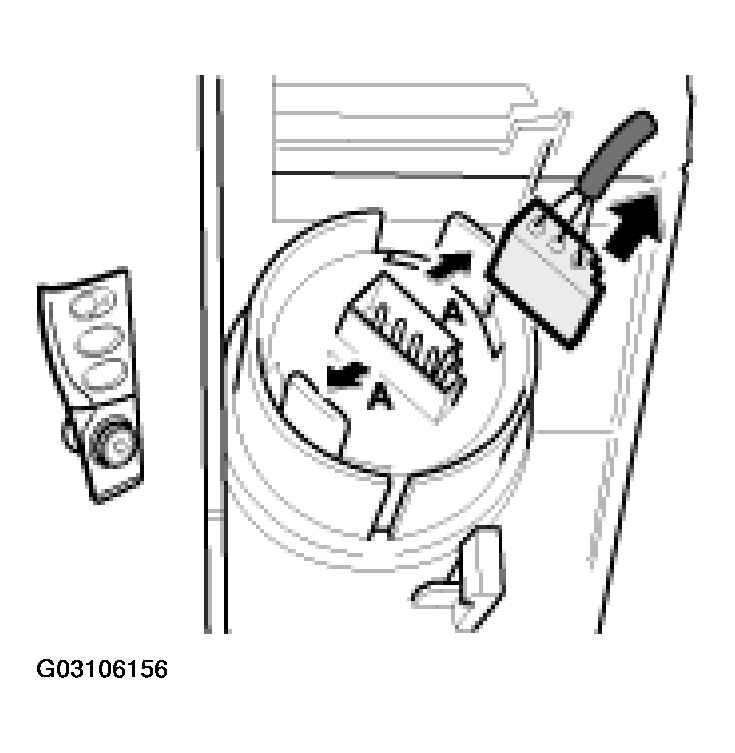

Fig 1: Removing Regulator For Wipe Interval
G03106156Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Disconnect the electrical plug connection.
  2. Press the locking tabs of the regulator for the wipe interval -arrows A-  outwards and guide the regulator out of the front cover towards the front. See Fig 1 .
