Assembling The Instrument Panel: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

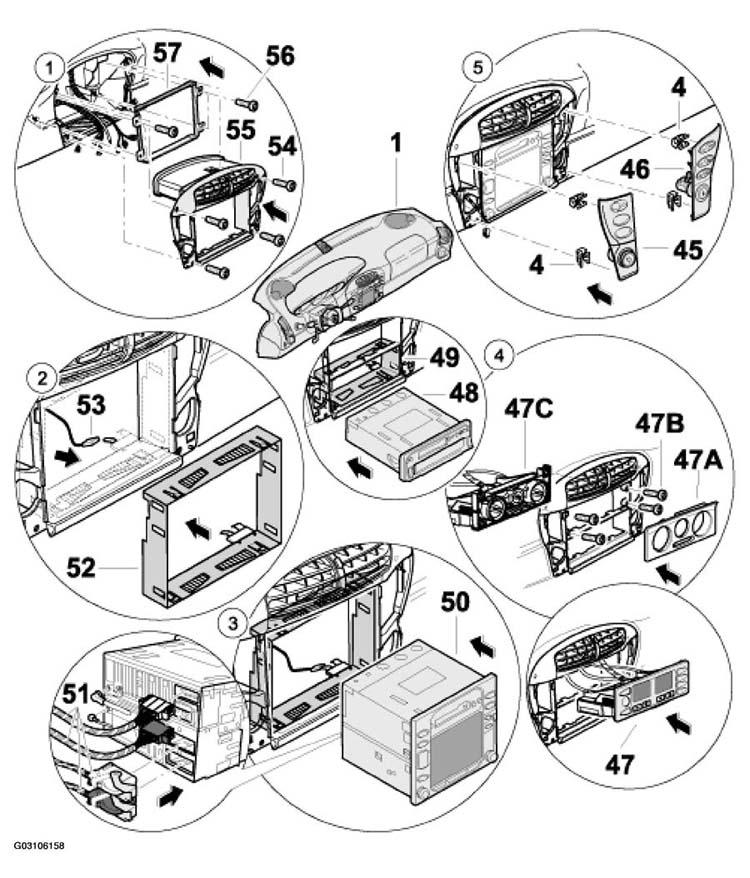

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL (1 Of 3)
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| Installing the regulator for wipe interval | ||||
| Installing the cigarette lighter | ||||
| 1 | Installing the inside retaining bracket and the center nozzle | Position the inside retaining bracket -57-1-56-55-54- (1) | ||
| 2 | Installing the PCM retaining bracket | Insert the retaining bracket -52-53- (1) | ||
| 3 | Installing the PCM -50- (1) | Connect the electrical plug connection -51- (1) Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR CONTROL UNIT (PCM) AS OF MODEL YEAR 2003 . Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR CONTROL UNIT (PCM) AS OF MODEL YEAR 2003 . |
||
| 4 | Installing the mechanical heating and fresh air regulator version -47A, 47B, 47C-47-48- (1) | See REMOVING AND INSTALLING HEATING AND FRESH-AIR CONTROL
. See REMOVING AND INSTALLING MECHANICAL HEATING AND FRESH-AIR CONTROL . See REMOVING AND INSTALLING THE CAR RADIO . |
||
| 5 | Installing the switch covers | Plug in the electrical plug connections. (Observe the color designation of the wiring harness switches). -4-45 and 46- Check the clips -4-45 and 46- (1) |
||
|
||||

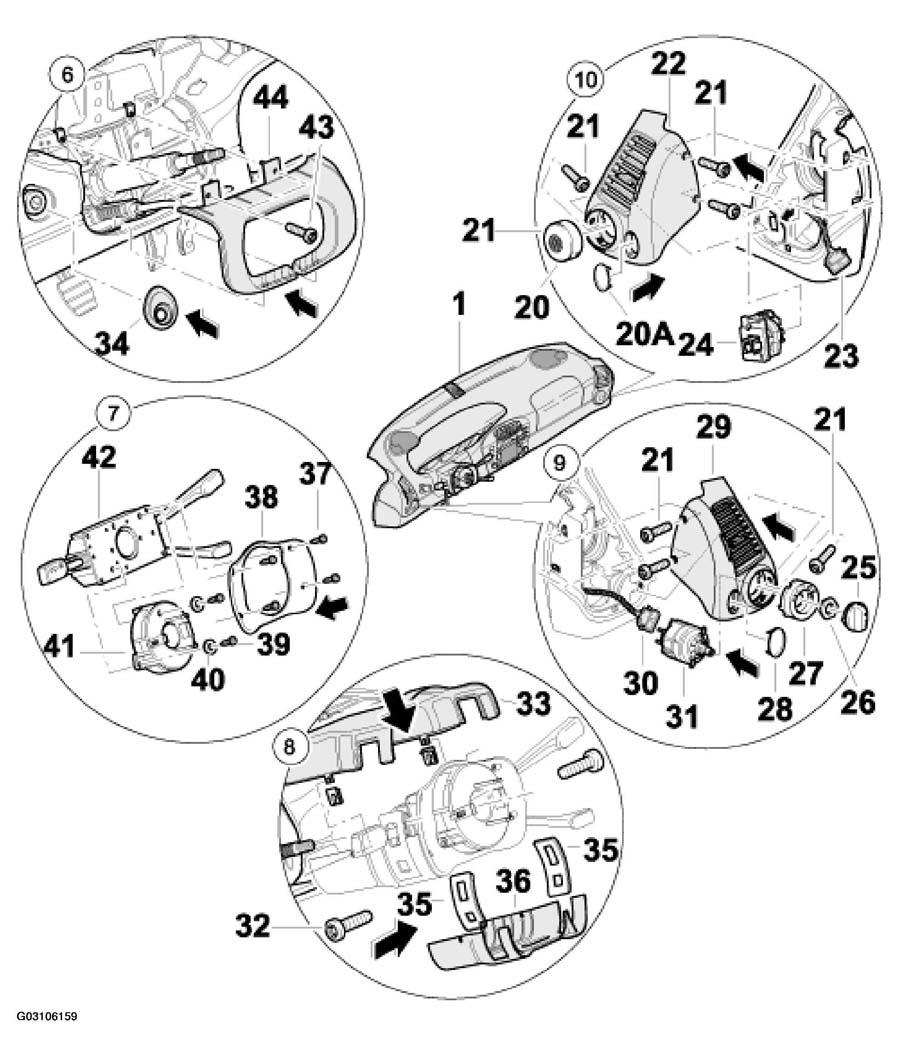

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL (2 Of 3)
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 6 | Installing the steering column cover | Position the steering column cover -44-43- Fig 2 | ||
| 7 | Installing the steering column switch | Connect the electrical plug connection of the steering column switch -42-41-38-37- Fig 2 Refer to REMOVING AND INSTALLING THE CONTACT UNIT |
||
| 8 | Installing the steering column switch cover | Position the steering column switch cover at the top and bottom or laterally -33, 36, 35-32-36-33- Fig 2 | ||
| 9 | Installing left side nozzles and main light switch | Connect the electrical plug connection -30-31-27-29-27-26-3.5 N.m (2.5 ft.lb)--21-25-28- Fig 2 | ||
| 10 | Installing the right side nozzles and the temperature sensor | Engage the temperature sensor -24-1-22-1-21-20, 20A Fig 2 (1) | ||
|
||||

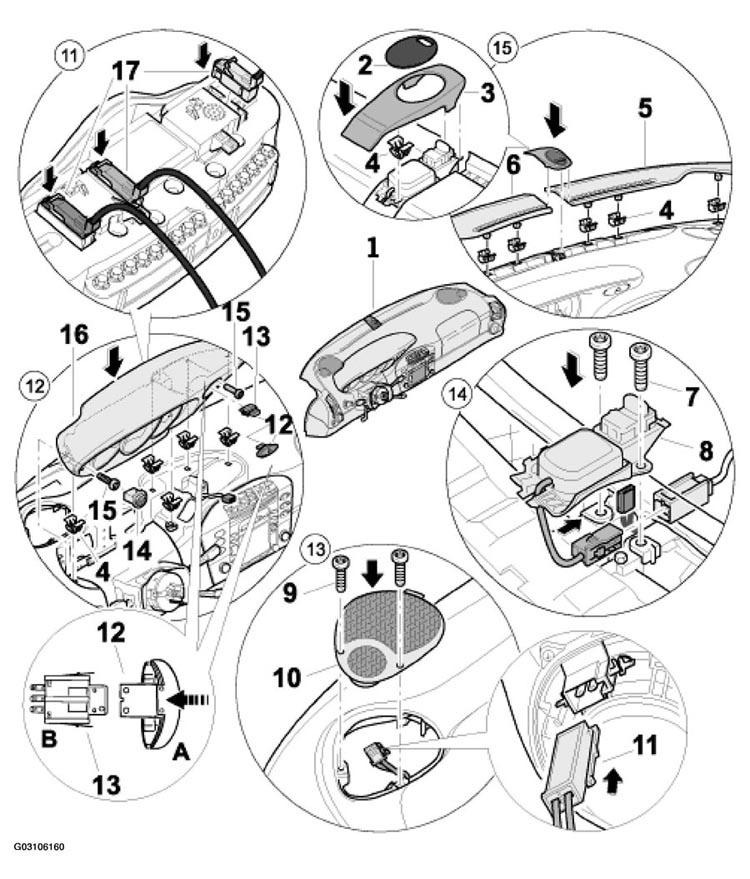

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL (3 Of 3)
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 11 | Connecting instrument cluster electrical plug connection | Plug in the electrical plug connection of the instrument mount. After inserting the plug connection -17-direction of the arrow- (1) | ||
| 12 | Installing instrument mount | Fit the hazard warning light switch -13-4-15-12-14- (1) | ||
| 13 | Installing the loudspeaker | Connect electrical plug connection -11-9- (1) | ||
| 14 | Installing the alarm readiness unit | Connect the plug connection. Secure the alarm readiness unit -8-7- (1) | ||
| 15 | Installing the alarm readiness cover and the defroster cover | Clip the defroster covers on the left and right -5, 6-4-3-8-4- (1) | ||
|
||||
