Installing The Regulator For Wipe Interval

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

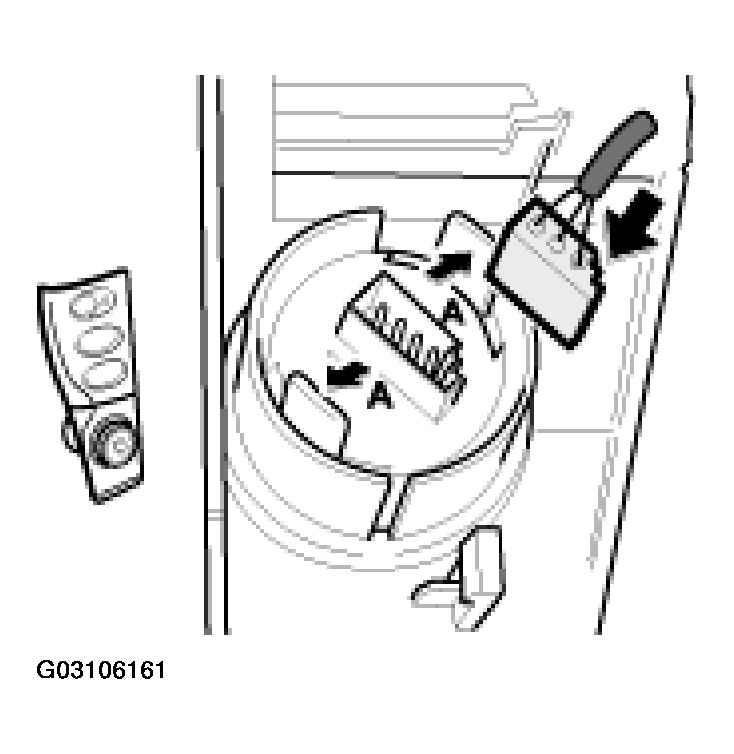

Fig 1: Installing Regulator For Wipe Interval
G03106161Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Insert the regulator for the wipe interval into the front cover from the front. Ensure that the locking tabs -A-  have engaged. See Fig 1 .
  2. Plug in the electrical plug connection.
