Installing The Cigarette Lighter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

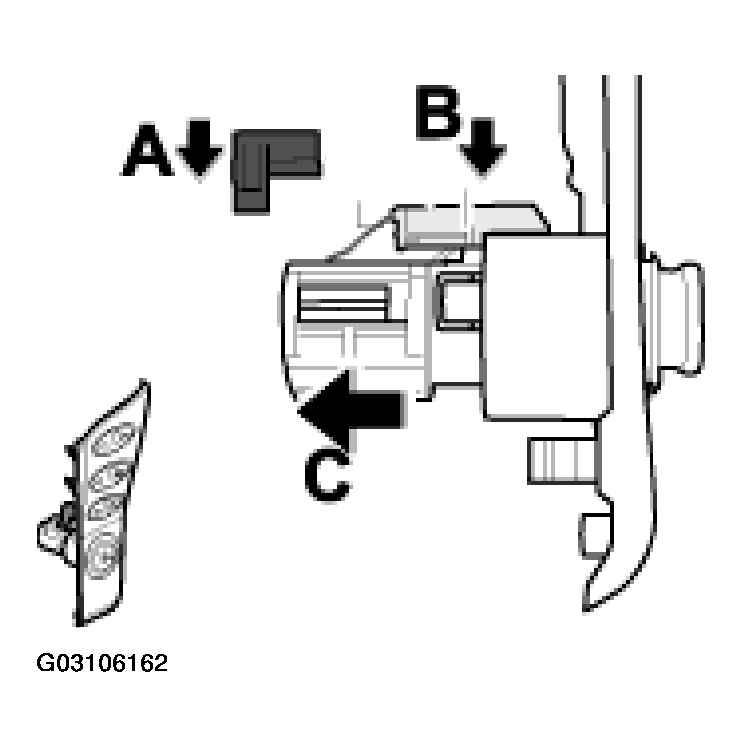

Fig 1: Installing Cigarette Lighter
G03106162Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Press the illumination ring with the cigarette lighter -C-  into the front cover from the front. See Fig 1 .
  2. Clip the lights bracket -B-  into place. See Fig 1 . Ensure that the locking tabs have engaged.
  3. Clip in the cover -A-  . See Fig 1 . Ensure that the locking tabs have engaged.
