Removing Cover And Center Nozzle For The Instrument Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Removing cover and center nozzle:
1. Insert a plastic spatula into the side of the cover -1- and press out. See Fig 2 .
2. Insert the second plate of the center nozzle into the metal clip -3- using a small screwdriver -2- . See Fig 2 . Press and hold screwdriver upwards in the direction of arrow and simultaneously pull out the center nozzle -2- with the cover -1- See Fig 2 .

  Fig 1: Inserting Second Plate Of Center Nozzle Into Metal Clip
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
Removing frame
Unscrew fastening screws -3- from the mount -4- . See Fig 2 .

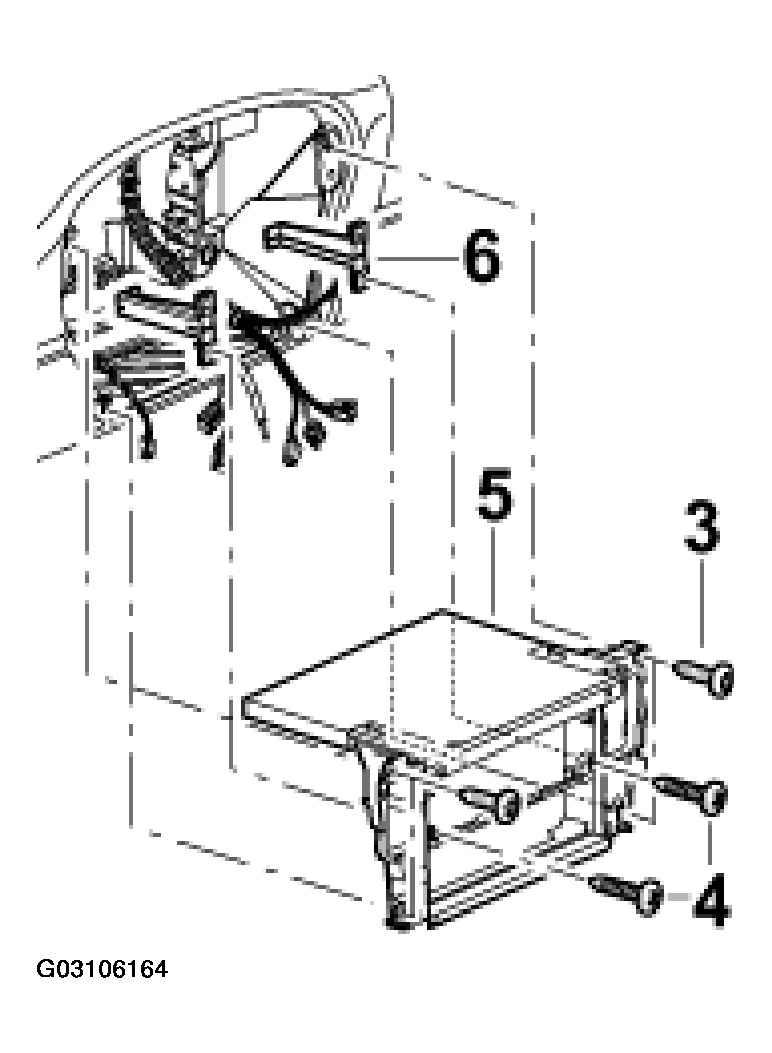

Fig 2: Unscrewing Fastening Screws From The Mount
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unclipping the cover from the center nozzle
Push in locking tab on the cover -1- using a screwdriver. Pull out center nozzle -2- . See Fig 3 .

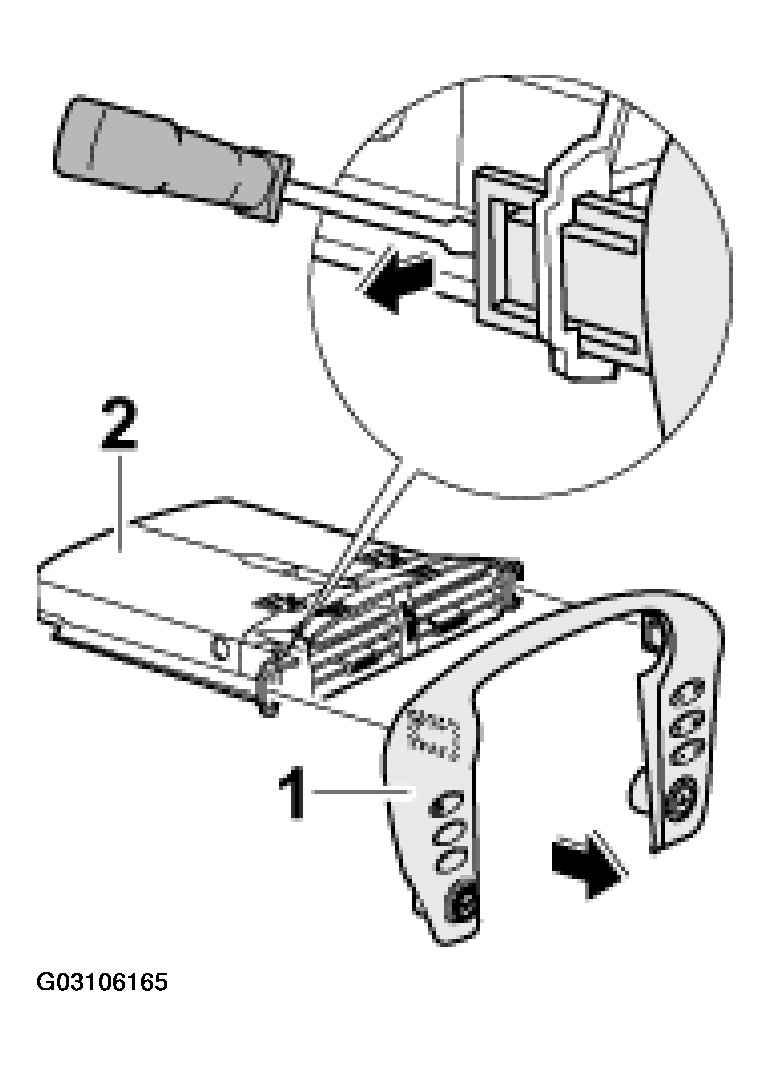

Fig 3: Unclipping Cover From Center Nozzle
Courtesy of PORSCHE OF NORTH AMERICA, INC.
