Installing Cover And Center Nozzle For The Instrument Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of material damage to finished covers (carbon-fibre composite, light/dark wood)!

The control switches must be correctly mounted before the cover is fitted.
Particular care is required when clipping in finished covers.

Clipping in the center nozzle.

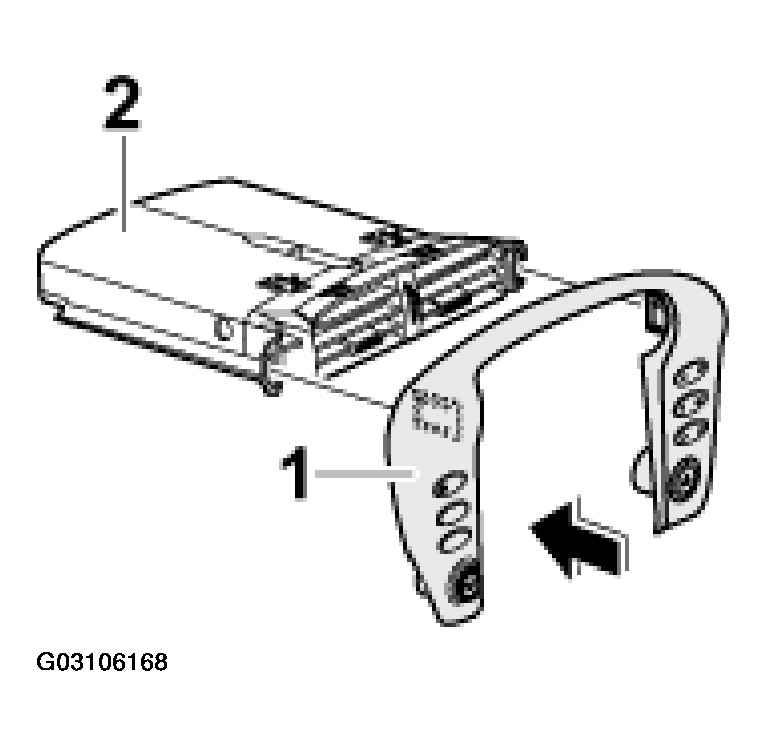

Fig 1: Clipping In Center Nozzle
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Connect the cover -1- with the center nozzle -2- . See Fig 1 . Ensure that the locking tab is engaged on the left and right side.
Installing frame
1. Position the frame -5- on the instrument panel and secure with the fastening screws -3- . See Fig 2 .

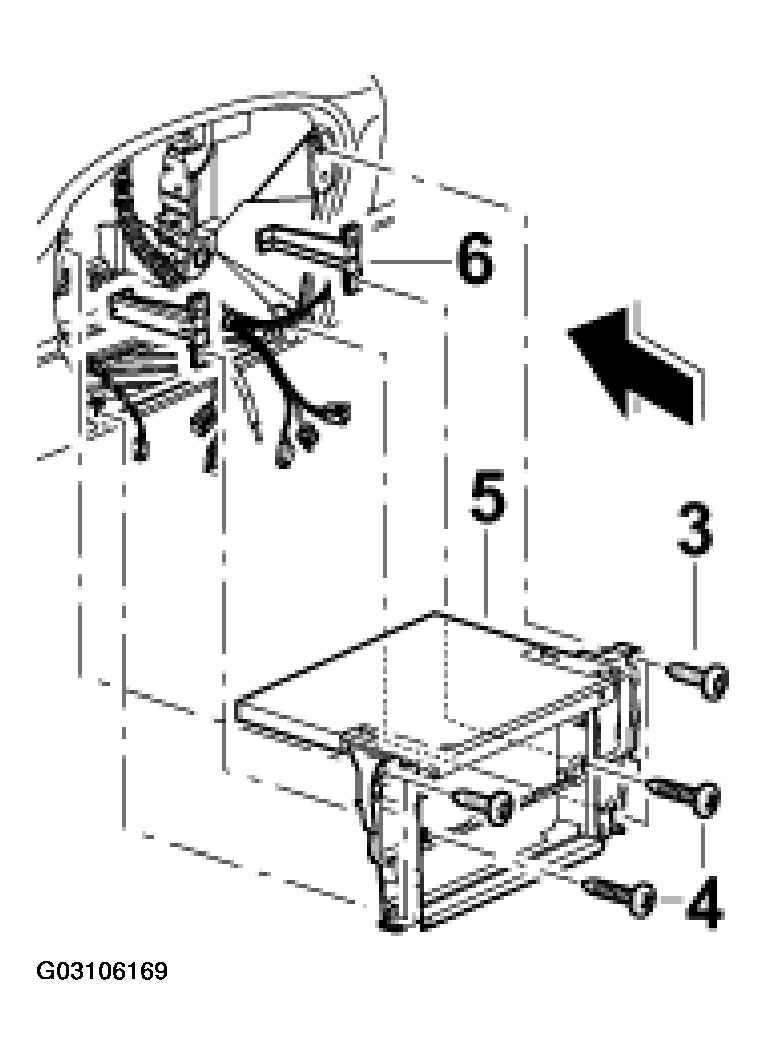

  Fig 2: Positioning Frame On The Instrument Panel
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing cover and center nozzle
1. Push the cover -1- with the center nozzle -2- into the instrument panel, ensuring that the clips are engaged at the top and the locking tabs at the side. See Fig 3 .

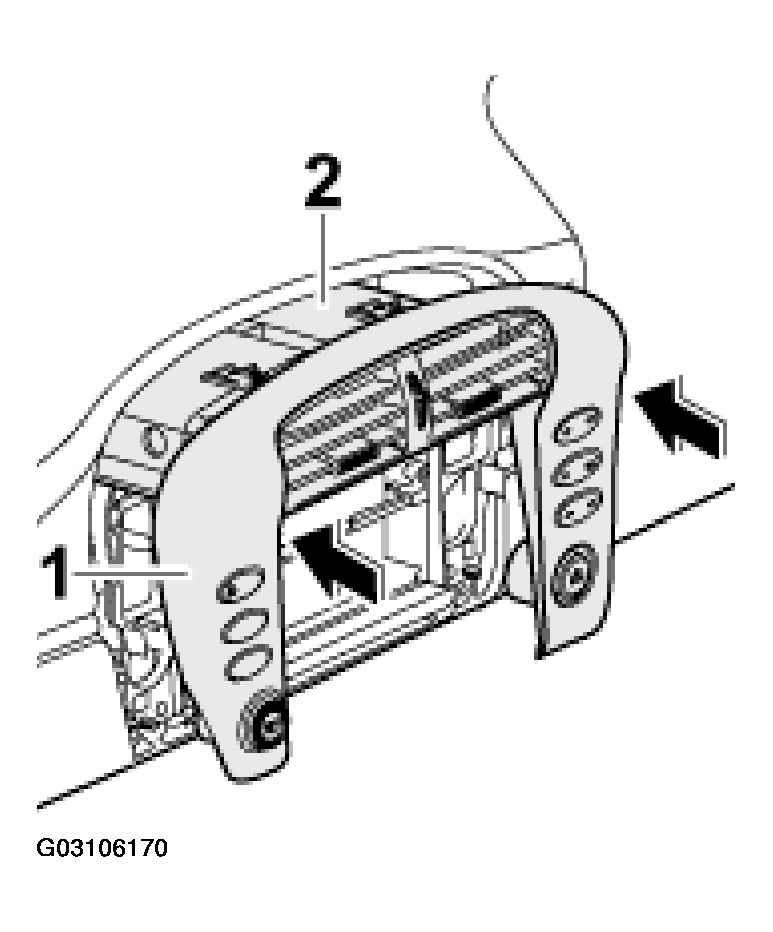

  Fig 3: Installing Cover And Center Nozzle
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
