Side identification with side airbag units

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Units identified with an R belong in the right door, units identified with an belong in the left door.
The locking pin -A- must point to the rear.
The wire connection point -B- must always face the front.
Fastening clip M5 -C- must always face the rear.

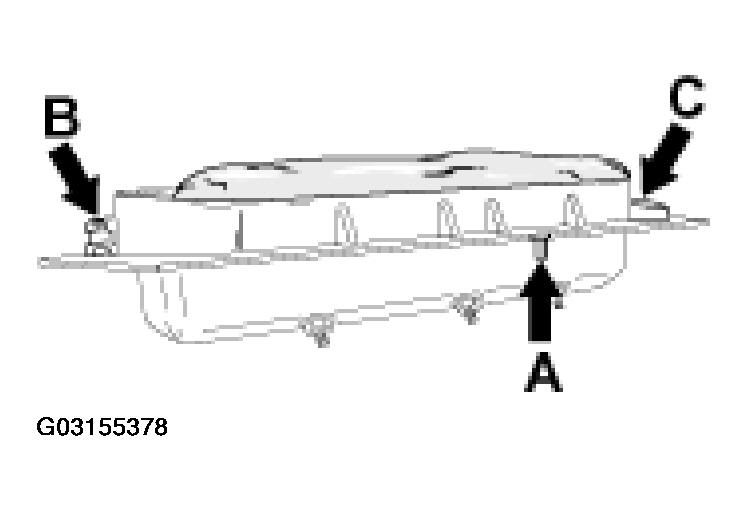

Fig 1: Locating Side Airbag Unit Locking Pin, Wire Connection Point & Fastening Clip

Courtesy of PORSCHE OF NORTH AMERICA, INC.
