Removing contact unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove airbag steering wheel. Refer to REMOVING AND INSTALLING STEERING WHEEL (AIRBAG) .
  2. Undo and remove the panel.

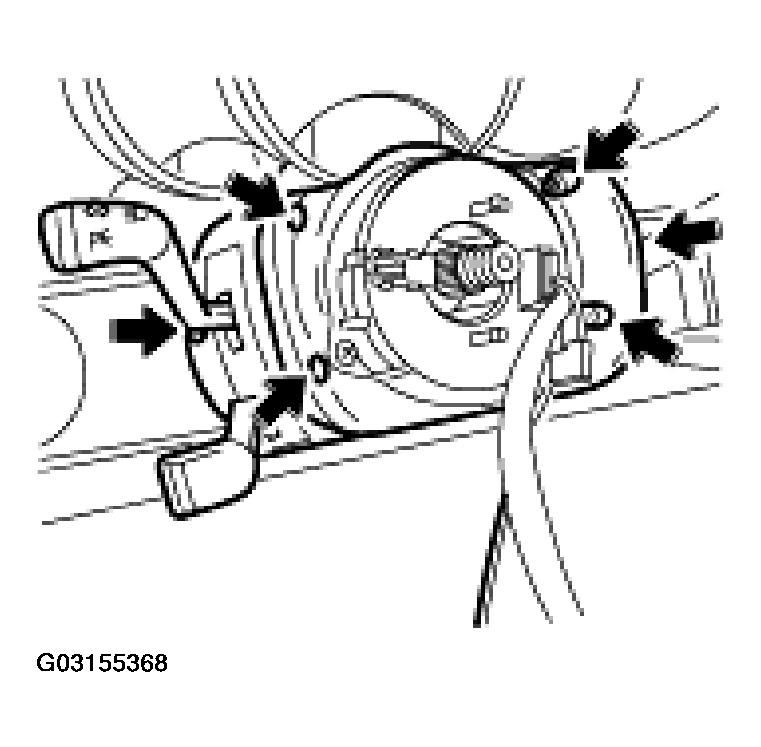

    Fig 1: Removing Panel
    G03155368Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Undo the -fastening screws-  of the contact unit.

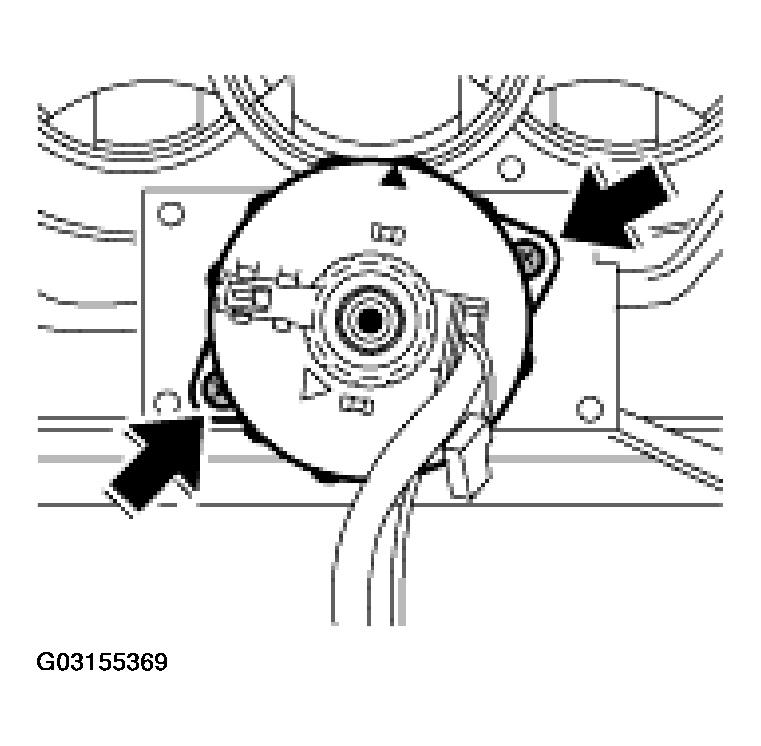

    Fig 2: Undoing Fastening Screws Of The Contact Unit
    G03155369Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull forward and disconnect the electrical plug connections.
  5. Remove the contact unit.
NOTE:
  • To prevent unintended rotation of the contact unit (KE) when the steering wheel has been removed, the contact unit locks itself when the steering wheel is pulled back!
  • Likewise, the contact unit unlocks automatically when the steering wheel is refitted!
