Installing contact unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front wheels still unchanged in straight-ahead position.
  2. Ensure that the exact centre position -(arrows)-  of the contact unit is maintained.

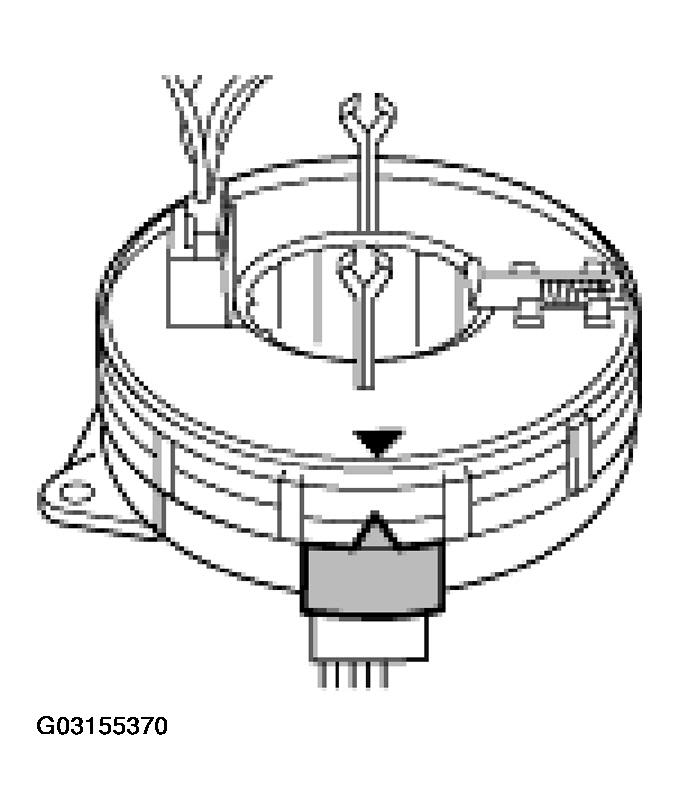

    Fig 1: Aligning Contact Unit
    G03155370Courtesy of PORSCHE OF NORTH AMERICA, INC.
