Test and adjusting values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

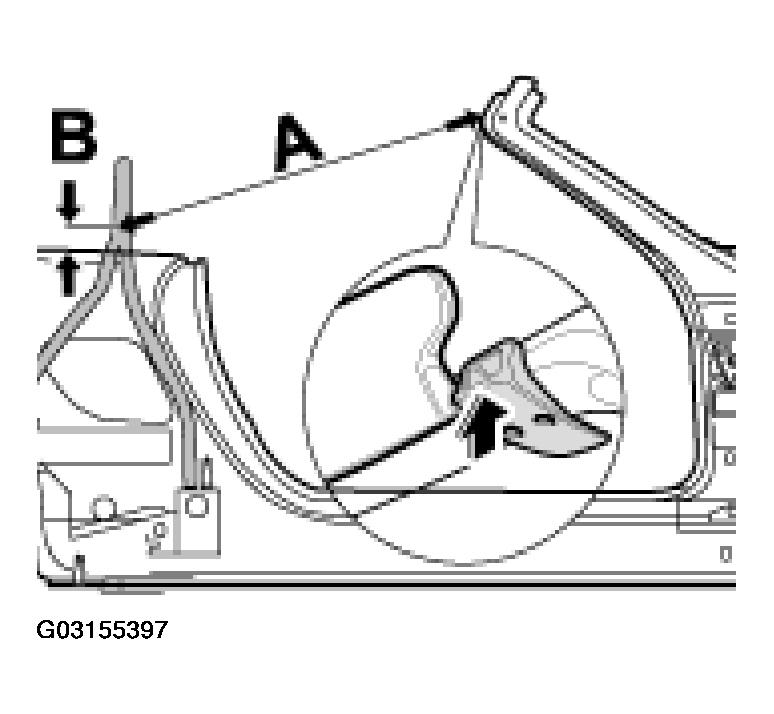

Measuring dimensions -A and B-

Fig 1: Measuring Dimensions
G03155397Courtesy of PORSCHE OF NORTH AMERICA, INC.
TEST & ADJUSTING VALUES - ROLL-OVER BAR

Designation Dimension Note
Adjusting the roll-over bar with the convertible-top frame in the body -A-  . See Fig 1 . 799 +/- 1 mm Oblique dimension is measured from centre of threaded bore for sash guide mount to underside of convertible top pin housing -arrow-  . See Fig 1 .
  -B-  . See Fig 1 . 39 +/- 1 mm Measured from centre of threaded bore for sash guide mount to top edge of rear side section.
