Removing front three-point belt
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING FRONT THREE-POINT BELT INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Removing side-panel lining | ||

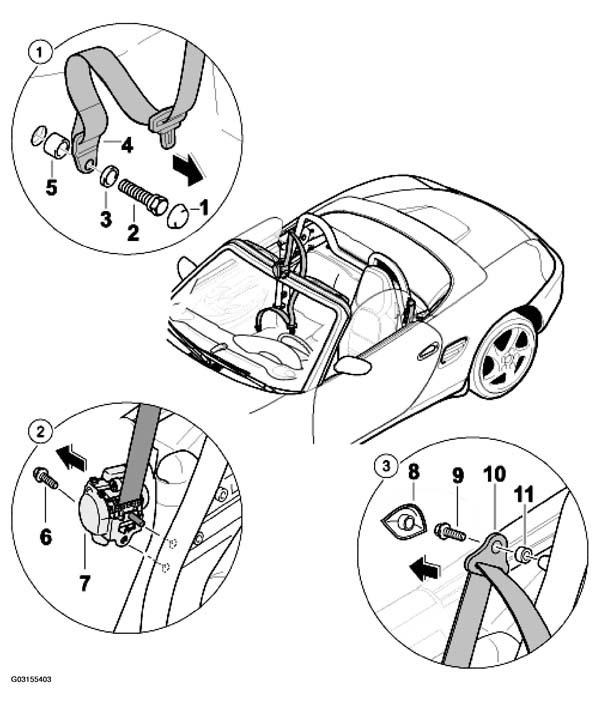

| 1 | Removing seat belt and fitting | Press out the covering cap -1-2-4-5-3- . See Fig 1 . |
| Removing belt tensioner | See REMOVING AND INSTALLING BELT TENSIONER | |
| Only on vehicles with belt tensioner | ||
| 2 | Removing automatic belt device | Unscrew fastening screw -6-7- . See Fig 1 . |
| 3 | Removing deflector | Remove the cover -8-9-10-11- . See Fig 1 . |
