Installing front three-point belt
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING FRONT THREE-POINT BELT INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Only on vehicles with belt tensioner Installing belt tensioner | See REMOVING AND INSTALLING BELT TENSIONER | |

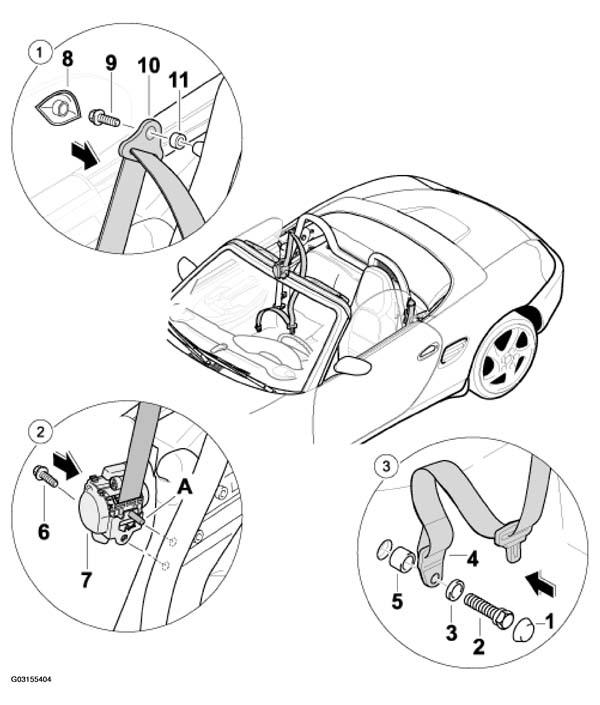

| 1 | Installing deflector | Position deflector -10-11-9-8- . See Fig 1 . |
| 2 | Installing automatic belt device | Position automatic belt device -7-A-6- . See Fig 1 . |
| 3 | Removing seat belt and fitting | Make sure that the belt strap can run properly! -2-3-4-5- . See Fig 1 . |
| Screw the fastening screw -2-3-4-5- . See Fig 1 . | ||
| Removing side-panel lining |
